Check Engine P0237 — Causes, Symptoms and Repair Cost

🔍 What Does P0237 Mean?

P0237 is the generic OBD-II definition for Turbocharger / Supercharger Boost Sensor “A” Circuit Low. Ford’s official code lists use that wording, and it as a manifold pressure / boost sensor signal too low fault.

In simple words, the ECU is seeing a boost sensor voltage that is lower than it should be. On some Ford documentation, the fault threshold is extremely low voltage, while older GM diagnostic material shows P0237 as a low-input condition when the boost sensor signal drops below the expected operating range.

⚙️ What This Code Usually Means in Real Life

P0237 is usually more of an electrical or sensor-signal problem than a true “too much/too little boost” code. In real diagnostics, it often points to:

• a bad boost/MAP sensor
• short to ground or open-circuit wiring
• sensor power supply fault
• connector corrosion
• occasionally a hose/intercooler issue that affects the pressure reading on some platforms.

That is why P0237 and P0236 are not the same. P0236 is more of a plausibility/range-performance fault, while P0237 is specifically about the signal being too low.

⚠️ How Serious Is P0237?

Severity: Medium to High

The code itself is electrical, but the effect can still be serious because the ECU may limit turbo control, reduce performance, or put the vehicle into a protective mode. Ross-Tech lists MIL activation, and manufacturer documents place P0237 in the boost-control fault family that can affect drivability.

If the car loses power badly, enters limp mode, or has other turbo codes with it, the issue should be treated as urgent. That is an inference based on how boost-control systems react when sensor input becomes invalid.

🚨 Common Symptoms of P0237

Typical symptoms may include:

• ✅ Check Engine Light
• ✅ Reduced engine performance
• ✅ Weak acceleration
• ✅ Turbo not responding normally
• ✅ Limp mode on some vehicles
• ✅ Hesitation under load
• ✅ Incorrect boost readings in live data.

On some vehicles, the symptoms may be mild at first, especially if the fault is intermittent. On others, the ECU may react quickly because it cannot trust the boost signal.

🧠 Most Common Causes of P0237

1️⃣ Faulty boost pressure sensor / MAP sensor

This is one of the most common causes. Ross-Tech directly points to the manifold pressure / boost sensor itself, and official code definitions clearly place P0237 in the boost-sensor circuit family.

2️⃣ Sensor power supply problem

A bad 5V reference or sensor supply fault can pull the signal low. Ross-Tech specifically lists boost sensor power supply faulty as a cause.

3️⃣ Wiring short to ground / open circuit

Low input faults are very often caused by damaged wiring, rubbed insulation, broken wires, or a short to ground. Ford and GM threshold-style documentation supports that P0237 is triggered by an abnormally low sensor signal.

4️⃣ Corroded or loose connector

Bent pins, moisture intrusion, green corrosion, or poor terminal contact can make the signal collapse or become unstable. Recommended checks include sensor power supply and sensor integrity, which makes connector condition an important practical diagnostic target.

5️⃣ Intercooler hose failure or plumbing issue

This is less “classic” than a wiring fault, but notes on some VW/Audi diesel applications mention intercooler hose failure and harness issues in related P0237 cases.

🔧 Step-by-Step Diagnosis

1️⃣ Scan all stored codes

First, check whether P0237 appears alone or together with related codes such as:

• P0236 — Boost Sensor Range/Performance
• P0238 — Boost Sensor High
• P0299 — Underboost
• P2262 — Boost Pressure Not Detected
• P2563 — Turbo Boost Control Position Sensor Range/Performance.

If P0237 appears with other turbo codes, that usually means the low signal is affecting overall boost control, not just the sensor line itself. That is an inference based on how these code families overlap diagnostically.

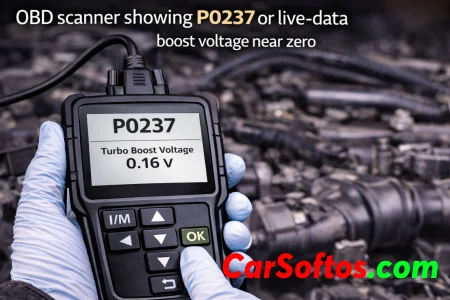

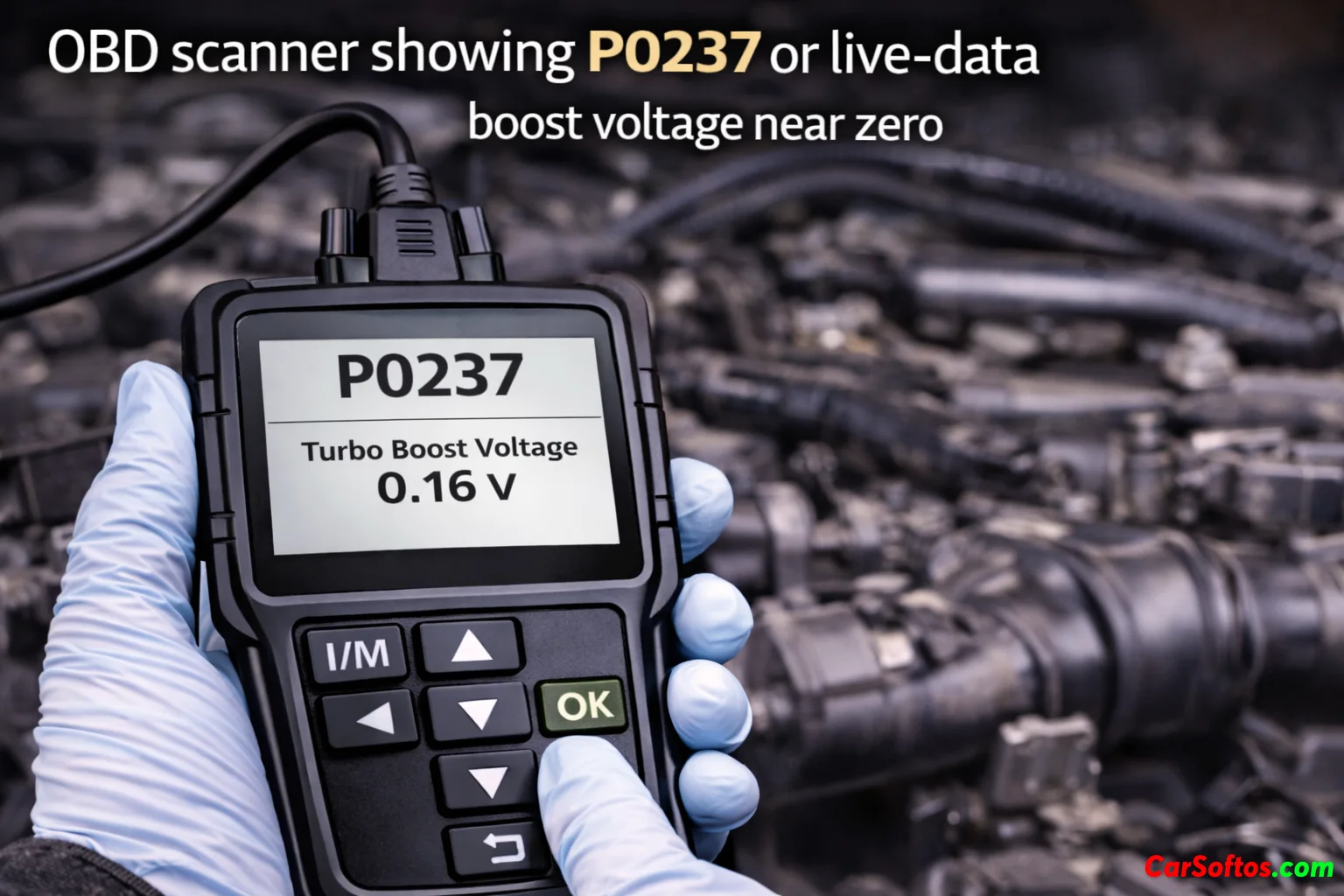

2️⃣ Check live data

Look at:

• boost pressure / MAP
• sensor voltage if your scanner shows it
• BARO if available
• desired vs actual boost.

A strong clue is a boost sensor value that looks unrealistically low with key-on engine-off or while the engine is under load. If the number stays near zero or does not follow engine conditions, the signal circuit is suspect.

3️⃣ Inspect the sensor and connector

Check for:

• bent pins
• oil contamination
• water intrusion
• broken lock tab
• loose connector fit
• green corrosion.

This is one of the highest-value checks because P0237 is very often caused by a simple electrical problem rather than a destroyed turbo.

4️⃣ Verify 5V reference, ground, and signal

Back-probe the sensor circuit if you have wiring information. On systems using a standard 3-wire pressure sensor, you usually want to confirm:

• 5V reference present
• good ground
• signal not pulled abnormally low.

If the reference or ground is missing, replacing the sensor alone may not fix anything.

5️⃣ Inspect harness routing

Look for harness damage near:

• turbo area
• intake manifold
• battery tray
• engine brackets
• heat shields.

This step is important because heat, vibration, and rubbing can easily create low-input faults on turbo engines. That is a practical inference based on the documented wiring/power-supply failure patterns.

6️⃣ Check plumbing only after the circuit

If the circuit checks out, inspect hoses, charge pipes, and intercooler connections. On some vehicles, hose failure can appear in the background of boost-sensor faults, but for P0237 the circuit itself should usually be checked first.

🛠️ How to Fix P0237

The correct repair depends on the root cause, but the most common fixes are:

✔️ Replace the boost/MAP sensor

If the sensor signal is stuck low and power/ground are correct, the sensor may be bad.

✔️ Repair wiring or connector damage

If the signal wire is shorted, open, or corroded, wiring repair may solve the problem completely.

✔️ Restore missing 5V reference or ground

If the sensor power supply is faulty, you need to repair that circuit before replacing parts blindly.

✔️ Fix intercooler hose / plumbing issues when present

On some applications, hose failures or related plumbing issues can contribute to implausible boost-sensor behavior.

💰 Typical Repair Cost

A practical article-friendly estimate:

• Boost/MAP sensor: $60–$250
• Connector repair / cleaning: $10–$80
• Wiring repair: $20–$150
• Hose / charge pipe fix: $20–$200
• Advanced diagnosis: $50–$150

These are practical market ranges, not one official pricing table. Exact cost varies a lot by vehicle and whether the sensor is easy to access. The repair categories themselves are grounded in the causes documented for P0237.

❗ Common Mistakes

❌ Replacing the turbo immediately

P0237 is usually not the first code that should make you condemn the turbo. It is far more commonly tied to the sensor circuit, power supply, or wiring.

❌ Ignoring the 5V reference

A dead reference circuit can make a good sensor look bad. Ross-Tech specifically calls out power-supply faults.

❌ Skipping live-data checks

You can waste money quickly if you do not confirm whether the signal is truly low in live data. Official threshold-style diagnostics show that this code is about the signal dropping below expected voltage.

❌ Confusing P0237 with P0236

P0236 is range/performance; P0237 is low input. They are close neighbors, but not the same failure type.

⚖️ P0237 vs Related Turbo Codes

P0237

Boost sensor “A” circuit low input. The ECU sees a signal that is too low.

P0236

Boost sensor “A” circuit range/performance. The signal is implausible or not behaving correctly, but not necessarily hard-low.

P0238

Boost sensor “A” circuit high input. Opposite direction: the ECU sees a signal that is too high.

P2563

More focused on turbo control position feedback rather than the boost sensor voltage itself.

👉 Simple explanation:

• P0236 = signal looks wrong
• P0237 = signal too low
• P0238 = signal too high
• P2563 = actuator/position side looks wrong.

🚗 Can You Drive With P0237?

Yes, sometimes — but not for long.

If the vehicle still runs normally, you may be able to drive short-term. But if power is weak, the car enters limp mode, or you have multiple turbo codes, it should be diagnosed quickly. That recommendation is based on the documented symptom profile and the role of the boost sensor in turbo control.

📌 Final Verdict

P0237 usually means the ECU is seeing a boost-sensor signal that is too low to be believable. The most common causes are a bad boost/MAP sensor, missing sensor power, wiring damage, connector corrosion, or a short to ground. On some vehicles, hose or intercooler failures can also appear around this fault.
