P0456 Code Explained: EVAP System Very Small Leak Detected (Full Diagnostic Guide)

P0456 – EVAP System Very Small Leak Detected

This code means the vehicle’s evaporative emission control system (EVAP) has detected a very small leak.

The EVAP system prevents fuel vapors from escaping into the atmosphere.

A “very small leak” can be as small as 0.020 inches — almost invisible.

🔬 How the EVAP System Works (Simple Explanation)

The EVAP system includes:

• fuel tank

• gas cap

• charcoal canister

• purge valve

• vent valve

• vapor lines

The system seals and performs pressure or vacuum tests.

If pressure drops slightly → P0456 is triggered.

🔥 The Most Common Cause: Loose or Faulty Gas Cap

In many cases:

• gas cap not tightened properly

• damaged gas cap seal

• cracked cap

Fix can be as simple as tightening or replacing the cap.

⚠ Is P0456 Serious?

Usually no immediate drivability issues.

The car typically:

• runs normally

• does not stall

• does not lose power

But it will:

• fail emissions test

• keep Check Engine Light on

It should be fixed, but it is not an emergency.

🔎 Other Common Causes of P0456

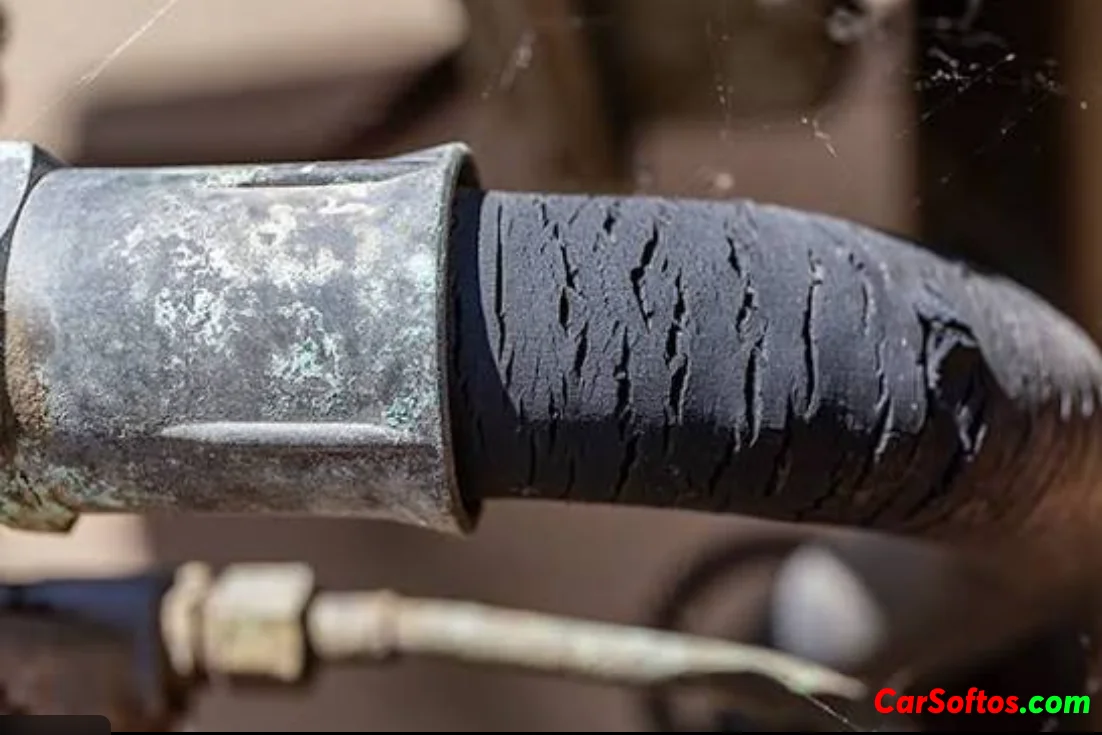

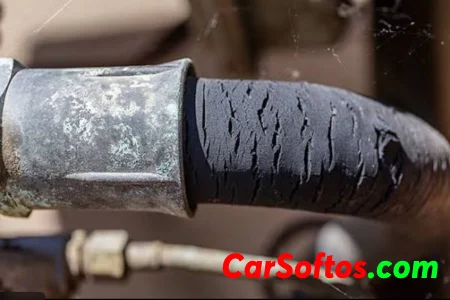

1️⃣ Small Cracked EVAP Hose

Tiny cracks in rubber vapor lines are common on older vehicles.

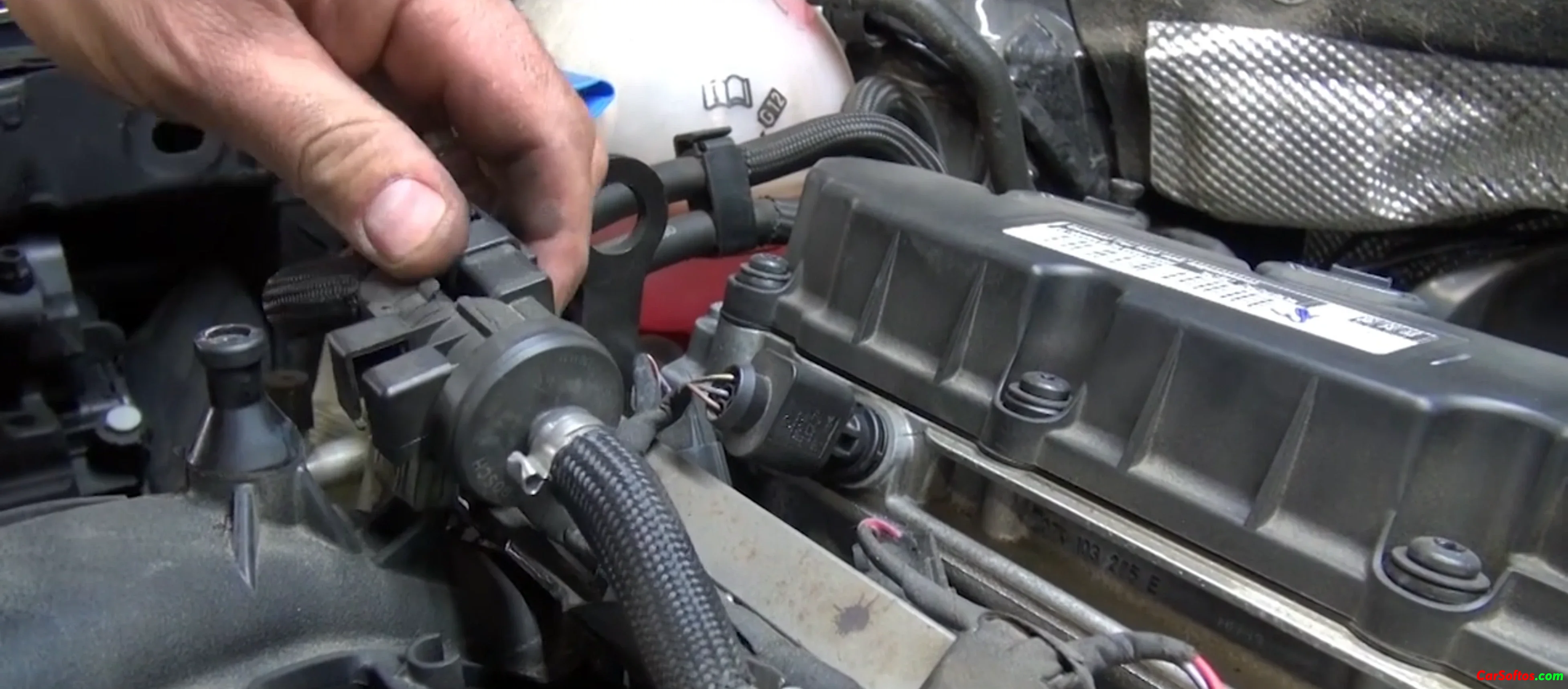

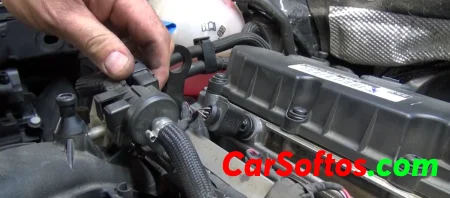

2️⃣ Faulty Purge Valve

If purge valve sticks open:

• system cannot hold vacuum

• leak is detected

May also cause rough idle.

3️⃣ Faulty Vent Valve

Vent valve controls airflow in EVAP system.

If it fails to seal → small leak code appears.

4️⃣ Charcoal Canister Damage

Rare, but possible if:

• overfilling fuel tank frequently

• physical damage under vehicle

5️⃣ Fuel Tank or Filler Neck Corrosion

Rust can create microscopic leaks.

More common in older vehicles.

⚙️ Professional Diagnostic Process

Step 1: Check Gas Cap First

• Remove and inspect seal

• Tighten until clicking sound

• Clear code and drive for several cycles

This fixes a large percentage of cases.

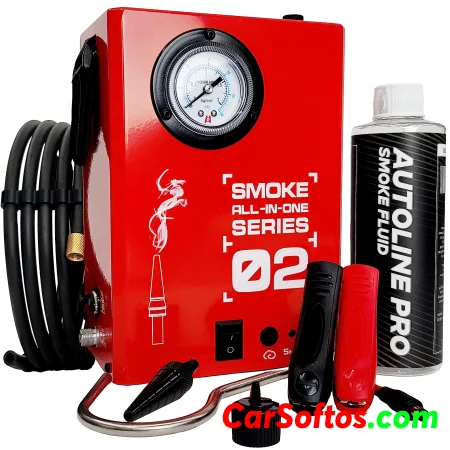

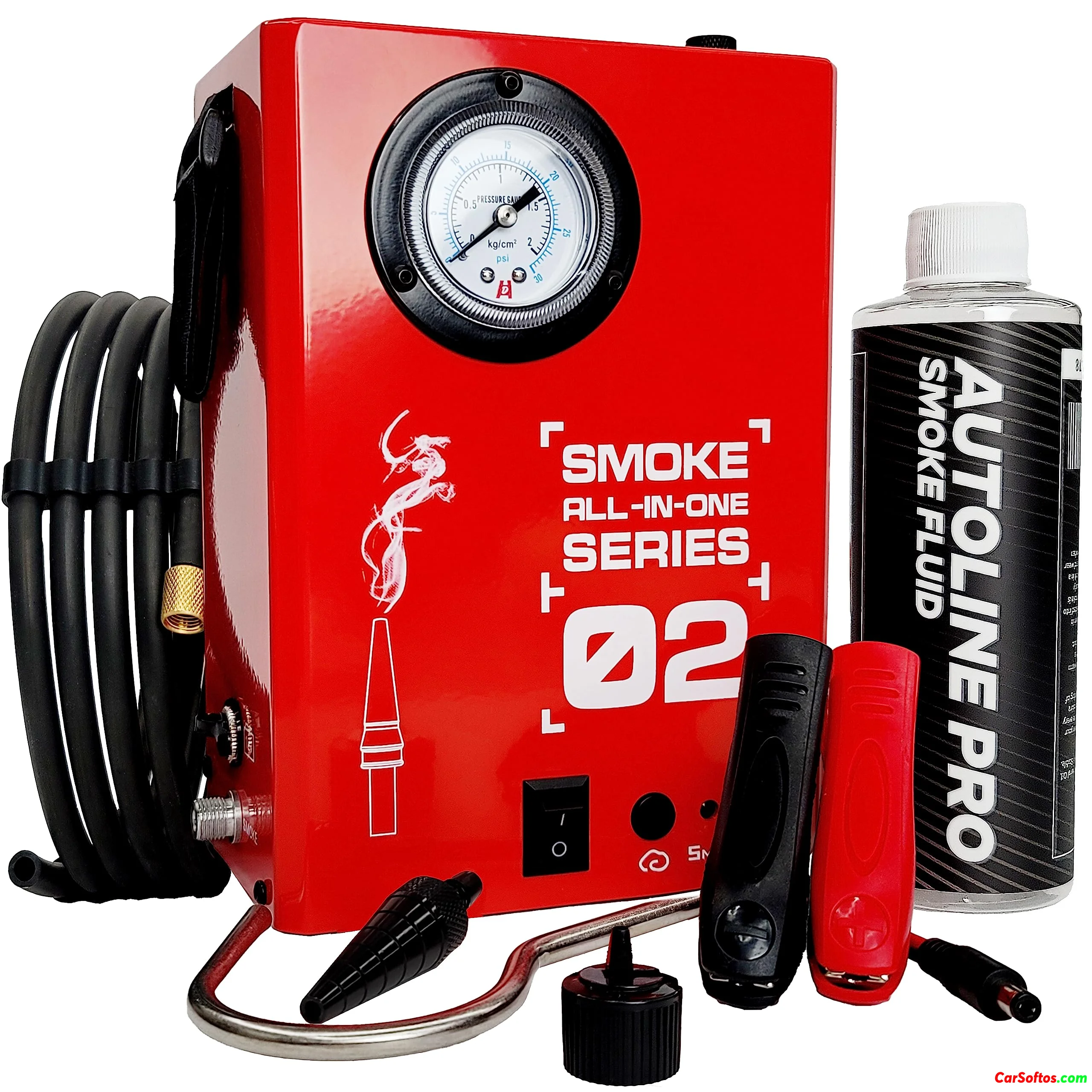

Step 2: Smoke Test the EVAP System

Smoke testing reveals:

• tiny hose leaks

• faulty valve seals

• hairline cracks

Most reliable way to locate small leaks.

Step 3: Scan Live EVAP Data

Check:

• purge valve command

• vent valve status

• fuel tank pressure readings

Irregular readings indicate valve failure.

🚨 Symptoms of P0456

Often none.

Sometimes:

• slight fuel smell

• check engine light only

No power loss in most cases.

💰 Repair Costs

• Gas cap replacement: $15–50

• Purge valve: $100–300

• Vent valve: $150–400

• EVAP hose repair: $100–300

• Smoke test diagnostic: $100–150

Generally affordable compared to engine codes.

❌ Common Mistakes

• Ignoring the gas cap

• Replacing canister without testing

• Clearing code repeatedly without fixing leak

• Overfilling gas tank after click

📊 Quick Diagnosis Table

FAQ

Is P0456 safe to drive?

Yes, in most cases.

Will P0456 clear itself?

If caused by loose cap and fixed properly, yes after several drive cycles.

How much does it cost to fix?

Often under $200.

Can weather cause P0456?

Extreme temperature changes can sometimes trigger EVAP sensitivity.

Final Thoughts

P0456 indicates a very small leak in the EVAP system.

It is usually not urgent, but should be fixed to:

• pass emissions

• turn off warning light

• prevent vapor leaks

Always start with the gas cap before moving to deeper diagnostics.
