BMW Code 2E7C — BSD Communication Fault (FULL GUIDE)

2E7C is a BSD data bus communication fault. On BMWs that use the BSD bus, the DME communicates with several “smart” components over that single line, and when communication on that line breaks down, the DME can store 2E7C. BMW-focused diagnostic sources repeatedly identify the BSD participants as the IBS (Intelligent Battery Sensor), alternator/voltage regulator, electric coolant pump, and oil level/condition sensor.

In plain English, 2E7C usually means the DME is no longer receiving valid BSD messages from one or more devices on the bus. That is why this code is broader than 2E85 or 2E8B: 2E7C points to the BSD network itself, while 2E85 and 2E8B often point more specifically to the coolant pump or IBS message being missing.

⚠️ What Does BMW 2E7C Mean?

👉 2E7C = BSD BUS COMMUNICATION FAILURE

In simple terms:

The ECU (DME) loses communication with one or more components on the BSD line.

🧠 What Is BSD System (VERY IMPORTANT)

The BSD (Bit Serial Data) bus is a communication line used by BMW.

It connects:

• 🔋 IBS (battery sensor)
• ⚡ Alternator
• 💧 Electric coolant pump
• 🛢️ Oil level sensor

👉 If ONE fails → whole system can break

🚨 Why This Code Is CRITICAL

This is NOT just a small fault.

👉 It can affect:

⚠ charging system
⚠ cooling system
⚠ battery management
⚠ oil monitoring

⚠️ Common Symptoms of 2E7C

🔴 Typical behavior:

• ❗ Check Engine Light

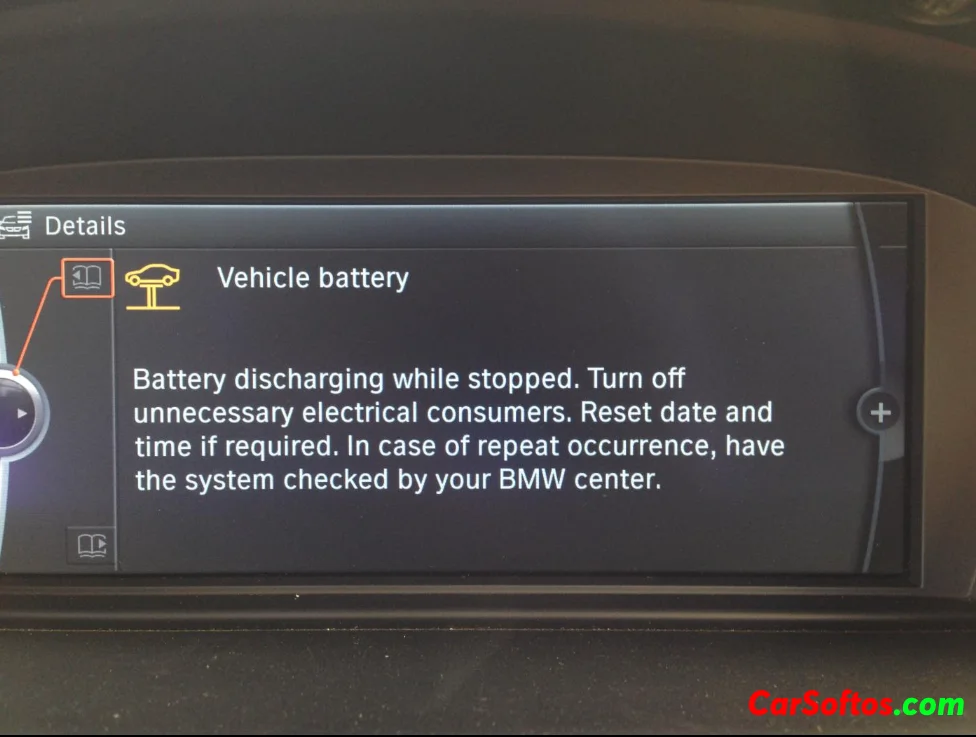

• 🔋 Battery discharge warning
• 💧 coolant pump runs constantly or stops working
• 🛢️ oil level = inactive
• ⚡ electrical issues
• 🚗 limp mode

🔥 REAL-WORLD SYMPTOM COMBO (IMPORTANT)

👉 If you see:

• oil level inactive
• battery warnings
• cooling issues

💡 This is almost 100% BSD failure

🔧 Most Common Causes of BMW 2E7C

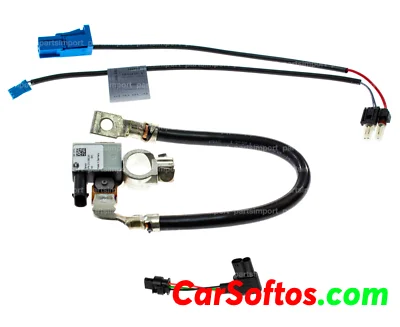

1️⃣ IBS Sensor Failure 🔋 (TOP CAUSE)

• stops communication
• corrupts BSD signal

2️⃣ Electric Water Pump 💧

• sends bad data
• breaks communication

3️⃣ Alternator / Voltage Regulator ⚡

• unstable voltage
• BSD interference

4️⃣ Oil Level Sensor 🛢️

• causes oil reading inactive
• affects BSD bus

5️⃣ Wiring / BSD Line Damage 🔌

• broken wire
• corrosion
• bad connector

6️⃣ DME Issue (RARE)

👉 last possibility

📊 Code Combinations

👉 Multiple codes = 100% BSD system issue

🔎 How to Diagnose 2E7C (PRO METHOD)

✔ Step-by-step:

1️⃣ Scan ALL codes

👉 look for related BSD faults

2️⃣ Check battery voltage

👉 unstable voltage = clue

3️⃣ Inspect IBS sensor

👉 easiest and most common fix

4️⃣ Isolate BSD components (CRITICAL STEP)

👉 Disconnect one by one:

• IBS
• alternator
• pump
• oil sensor

➡ find which breaks communication

5️⃣ Inspect wiring

👉 especially near:

• battery
• engine
• pump

6️⃣ Only then check DME

⚠️ Common Mistakes

❌ replacing water pump immediately
❌ replacing battery blindly
❌ ignoring IBS
❌ skipping wiring check

💰 Repair Cost

🚗 Can You Drive With 2E7C?

⚠️ Short-term — yes

BUT:

❌ risk of no-start
❌ overheating
❌ electrical failure

🧠 KEY INSIGHT (VERY IMPORTANT)

👉 2E7C = network problem, not one part

👉 It’s like:

💡 “communication between systems is broken”

🏁 Final Thoughts

The BMW 2E7C code indicates a BSD communication failure, affecting multiple systems.

Most common causes:

• IBS sensor
• coolant pump
• alternator
• wiring issues
