The BMW 2E85 code is most commonly tied to a BSD bus communication fault involving the electric coolant pump. In many BMW diagnostic reports, 2E85 appears as a “BSD, message; electric coolant pump: missing” or similar wording, which means the DME is not receiving the expected communication from the pump over the BSD line.

This is important because many owners assume 2E85 always means the water pump itself is dead. In reality, BMW owners and technicians often find that 2E85 can also be triggered by a broader BSD bus problem, not only a failed pump. The BSD circuit can involve the electric coolant pump, alternator, IBS (intelligent battery sensor), and oil condition sensor, so a fault in one of these components can create confusing codes elsewhere.

That is exactly why this code deserves a deeper diagnosis and not just blind parts replacement.

🔎 What Does BMW Code 2E85 Mean?

On many BMW engines, the BSD bus is a communication line used by the DME to talk to certain smart electrical components. When the DME logs 2E85, it usually means communication with the electric coolant pump is missing or implausible. BMW forum diagnostics repeatedly describe the code that way, and one technical BMW-focused source notes that BMW TIS guidance references 2E85 together with electric coolant pump communication issues.

In simple terms:

• the DME sends commands

• the coolant pump is expected to answer

• that reply is missing or corrupted

• the DME stores 2E85

This can happen because of:

• a failing electric water pump

• unstable voltage

• BSD bus interference from another component

• damaged wiring or connectors

• in rare cases, a DME-side BSD issue

🧠 Why 2E85 Is Commonly Misdiagnosed

One of the biggest mistakes with 2E85 is replacing the coolant pump first, then discovering the problem is still there.

BMW owners have documented cases where alternator voltage regulator faults or another BSD component caused water-pump-related communication codes. One forum case specifically explains that the BSD circuit includes the water pump, alternator, IBS, and oil condition sensor, and that a fault in any of them may trigger BSD-related errors. In that example, the actual fix was the alternator voltage regulator, even though the car was showing water pump communication/power faults.

That means 2E85 is not always a “buy a pump now” code. It is often a bus-level communication fault.

🚗 What Components Are on the BMW BSD Bus?

BMW diagnostics discussions repeatedly identify the main BSD participants as:

• electric coolant pump

• alternator

• IBS (intelligent battery sensor)

• oil condition sensor

This matters because a fault in any one of these can create a chain reaction of BSD errors. A BMW owner may scan the car and see:

• 2E85 — coolant pump missing

• 2E8B — IBS missing

• 2E7C — BSD bus communication fault

• 2E84 / 2E83 — additional coolant pump communication or reduced-power messages

When several BSD-related codes appear together, the smarter conclusion is often “the BSD line has a problem”, not “all those parts failed at once.”

⚠️ Common Symptoms of BMW 2E85

The symptoms vary depending on what is actually failing, but common owner reports include:

• engine temperature running too low or unstable

• cooling fan behaving abnormally

• failure of coolant pump activation / bleed procedure

• intermittent overheating

• reduced coolant pump control

• Check Engine Light or stored shadow faults

In one E90 discussion, the owner reported coolant temperature staying around 70°C instead of about 95°C, and the diagnostic suspicion was that the DME could not properly communicate with the pump, so the pump may have been running in a default mode instead of normal closed-loop control.

That is a useful clue:

2E85 does not always mean overheating immediately.
Sometimes it causes the pump to behave in a fallback mode, which can make the engine run too cool instead.

🔥 Why 2E85 Can Be More Serious Than It Looks

A lot of BMW owners ignore a single communication fault when the car still runs. But 2E85 can become serious because if the BSD communication fault worsens, the DME may lose proper control of the coolant pump. That can eventually lead to:

• improper coolant circulation

• failed bleed procedure

• overheating under load

• limp mode or additional cooling system faults

If 2E85 appears together with codes like 2E81, 2E83, 2E84, 2E8B, or 2E7C, the problem is especially worth taking seriously because that pattern suggests the issue may be bigger than a single stored fault.

🔧 Most Common Causes of BMW 2E85

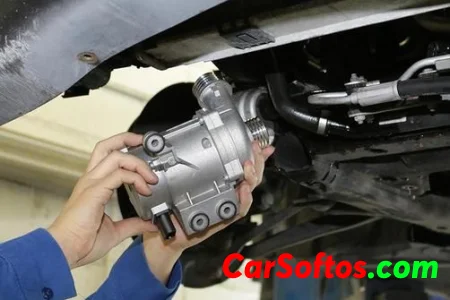

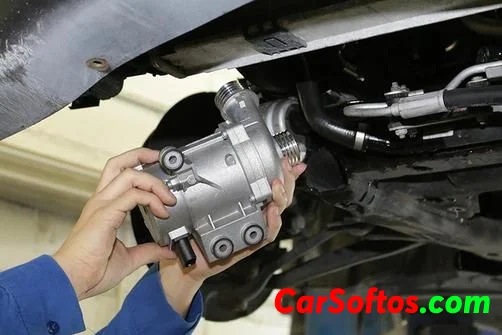

1️⃣ Failing Electric Coolant Pump

This is still one of the most common real causes. Forum discussions around 2E85 frequently point back to the electric water pump electronics as the likely failure point, especially on BMW engines known for electric pump problems. Some owners note the pump may still partly function before fully failing, which makes the diagnosis more confusing.

2️⃣ BSD Bus Fault Caused by Another Component

A faulty alternator/voltage regulator, IBS, or oil condition sensor can disturb the BSD line and create pump communication faults even when the water pump is not the only bad part. This is one of the most important things BMW owners miss.

3️⃣ Voltage Fluctuation / Charging Issues

BMW-focused technical commentary notes that rapid supply-voltage fluctuations can cause the control module to stop responding correctly, and TIS guidance is described as indirectly pointing at this in 2E81/2E85 scenarios.

4️⃣ Wiring or Connector Problems

Damaged connectors, water intrusion, corrosion, or wiring damage on the BSD line can interrupt communication between the DME and pump. BMW forum diagnosis around BSD faults often centers on harness inspection and line testing.

5️⃣ DME/BSD Signal Issue

Rare, but possible. One BSD diagnostics thread documents a case where the DME itself was ultimately identified as the source after signal testing on the BSD line.

📊 Real-World Fault Patterns You Should Mention in the Article

For stronger SEO and for better reader value, this article should highlight the common code bundles seen with 2E85:

2E85 + 2E81

Usually points toward coolant pump speed/control issues plus communication problems.

2E85 + 2E83

Suggests the pump may be in reduced-power operation or seeing supply-voltage problems.

2E85 + 2E8B

This often pushes diagnosis toward the BSD bus as a whole, because 2E8B is related to the IBS.

2E85 + 2E7C

Very strong sign that the core issue is a BSD communication fault, not just one isolated pump complaint.

This kind of section can bring in extra Google traffic because many owners search BMW codes in combinations, not one by one.

🛠️ How to Diagnose BMW 2E85 Properly

A good diagnosis path looks like this:

Step 1: Read all stored codes

Do not stop at 2E85. Check whether you also have:

• 2E81

• 2E83

• 2E84

• 2E8B

• 2E7C

• battery or voltage-management faults

Step 2: Check cooling behavior

Look at actual coolant temperature. If the engine runs too cool or the pump bleed procedure fails, that is a useful clue.

Step 3: Check battery and charging voltage

Because BSD faults can be caused by unstable voltage, inspect battery health and alternator output before buying expensive parts.

Step 4: Inspect BSD components one by one

BMW owners often troubleshoot BSD issues by isolating the components on the line one at a time to see which one is corrupting communication. This method is discussed repeatedly in BMW forum diagnostics.

Step 5: Test the pump, but do not assume

If the pump activates and moves coolant, that does not automatically clear it as healthy. It may still have an internal electronics issue or only work intermittently.

Step 6: Consider BSD signal testing

In difficult cases, more advanced testing of the BSD line may be needed, and rare cases can end up pointing to the DME.

💰 BMW 2E85 Repair Cost

Repair cost depends completely on the root cause:

• coolant pump replacement: moderate to high

• alternator / voltage regulator repair: moderate

• IBS replacement: lower to moderate

• wiring repair: variable

• DME-related repair: expensive

That is exactly why a deep diagnosis saves money. The same 2E85 code can lead to a cheap fix in one BMW and a much larger cooling-system repair in another.

🚗 Can You Drive With BMW 2E85?

Sometimes the car will still drive, but it is not smart to ignore it, especially if there are cooling-related symptoms.

If the DME cannot properly control the pump, the risks include:

• improper temperature regulation

• failed bleed procedure

• eventual overheating

• getting stranded when the pump or BSD fault worsens

If 2E85 is present with overheating, fan running abnormally, or multiple BSD faults, repair should move to the top of the list.

🏁 Final Verdict

BMW code 2E85 usually means the DME is missing communication from the electric coolant pump over the BSD bus. But the smartest way to frame it is this:

2E85 is often a BSD communication fault first, and only then a pump code.

That is why the most common real causes include:

• failing electric coolant pump

• alternator / voltage regulator issue

• IBS fault

• oil condition sensor issue

• wiring / BSD line problem

• in rare cases, DME-side BSD fault

The single most valuable takeaway for the reader is:

Do not replace the water pump just because you saw 2E85 once. First check the entire BSD bus.
