BMW BSD System Explained (ALL CODES)

⚠️ What Is BMW BSD System?

👉 BSD = Bit Serial Data bus

This is a communication line used by BMW DME (engine ECU) to control and monitor key components.

🔗 Connected components:

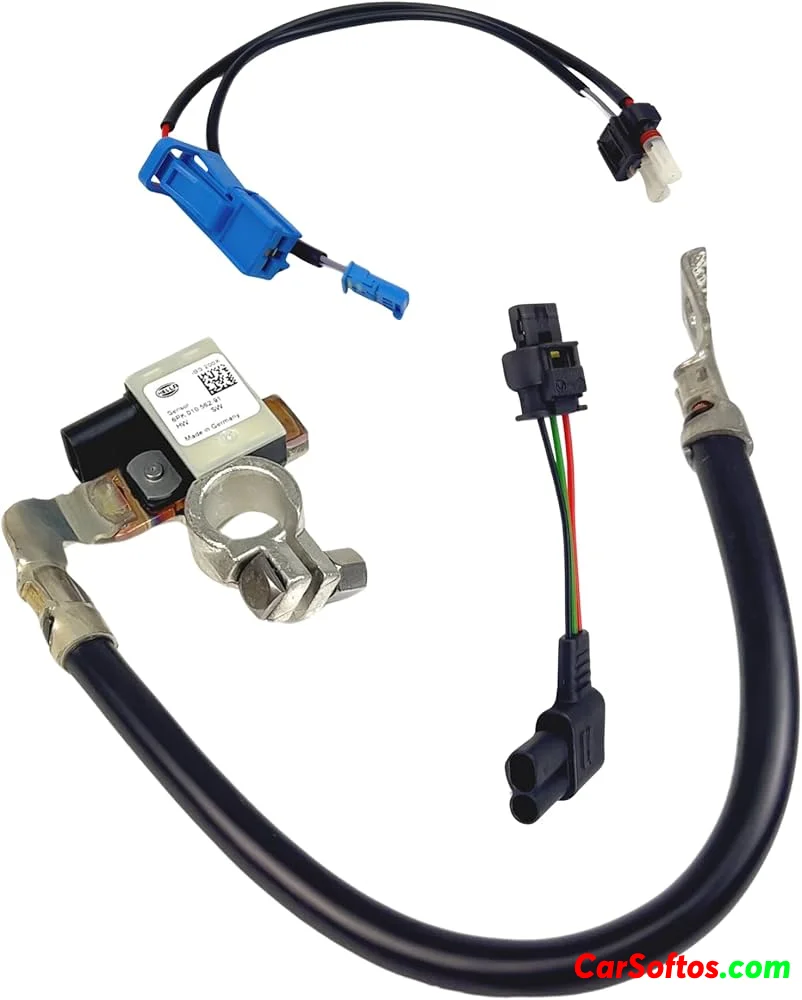

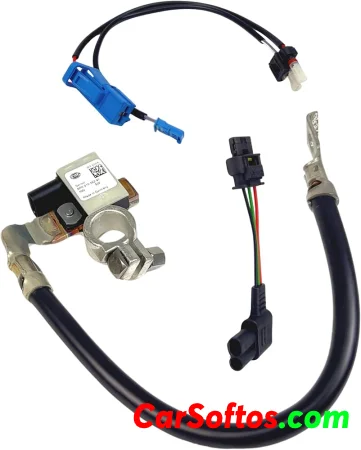

• 🔋 IBS (Intelligent Battery Sensor)
• ⚡ Alternator (voltage regulator)

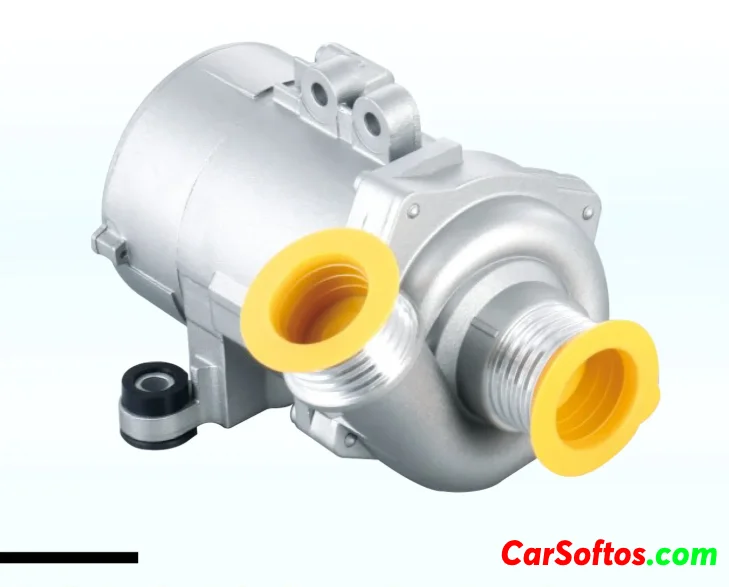

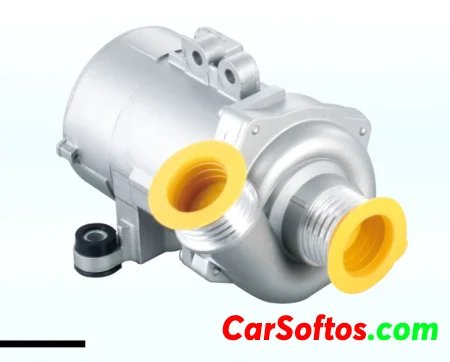

• 💧 Electric coolant pump
• 🛢️ Oil level / condition sensor

🧠 Why BSD System Is CRITICAL

👉 BSD controls multiple systems at once:

• charging system
• cooling system
• battery management
• oil monitoring

💥 If BSD fails → multiple errors appear at the same time

🚨 Most Common BMW BSD Codes (FULL LIST)

🔴 Core BSD Codes

🔧 Related BSD Codes

👉 🔥 IMPORTANT:

If you see 2–3 of these codes together → BSD SYSTEM FAILURE

⚠️ How BSD Failure Looks in Real Life

🔥 Classic symptom combination:

• 🛢️ Oil level = inactive
• 🔋 Battery discharge warning
• 💧 Water pump running constantly
• ⚡ Electrical issues

👉 💡 This = BSD failure 100%

🔧 What Causes BSD Problems

1️⃣ IBS Sensor 🔋 (MOST COMMON)

• fails internally
• sends wrong data
• kills communication

2️⃣ Electric Water Pump 💧

• faulty electronics
• communication stops

3️⃣ Alternator / Voltage Regulator ⚡

• voltage spikes
• unstable signal

4️⃣ Oil Level Sensor 🛢️

• causes “inactive” reading
• disrupts BSD

5️⃣ Wiring / BSD Line 🔌

• broken wire
• corrosion
• loose connector

6️⃣ DME (RARE)

• last diagnosis step

📊 BSD System Logic (IMPORTANT)

👉 BSD works like a chain:

• one component fails
• communication breaks
• ALL systems affected

🔎 How to Diagnose BSD System (PRO LEVEL)

✔ Step-by-step method:

1️⃣ Scan ALL codes

👉 identify BSD-related ones

2️⃣ Check battery voltage

👉 unstable voltage = red flag

3️⃣ Inspect IBS sensor

👉 easiest & most common fix

4️⃣ Isolate BSD devices (CRITICAL)

Disconnect one by one:

• IBS
• alternator
• coolant pump
• oil sensor

👉 find faulty unit

5️⃣ Check wiring

👉 especially near battery & engine

6️⃣ Check alternator output

7️⃣ Only then check DME

⚠️ Common Mistakes

❌ replacing water pump first
❌ replacing battery blindly
❌ ignoring IBS
❌ not checking wiring

👉 💡 BSD diagnosis = SYSTEM approach

💰 Repair Cost

🚗 Can You Drive With BSD Fault?

⚠️ Depends on severity

Possible risks:

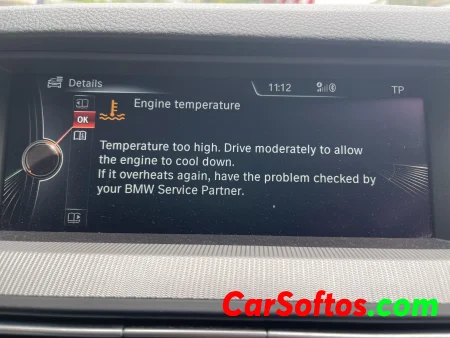

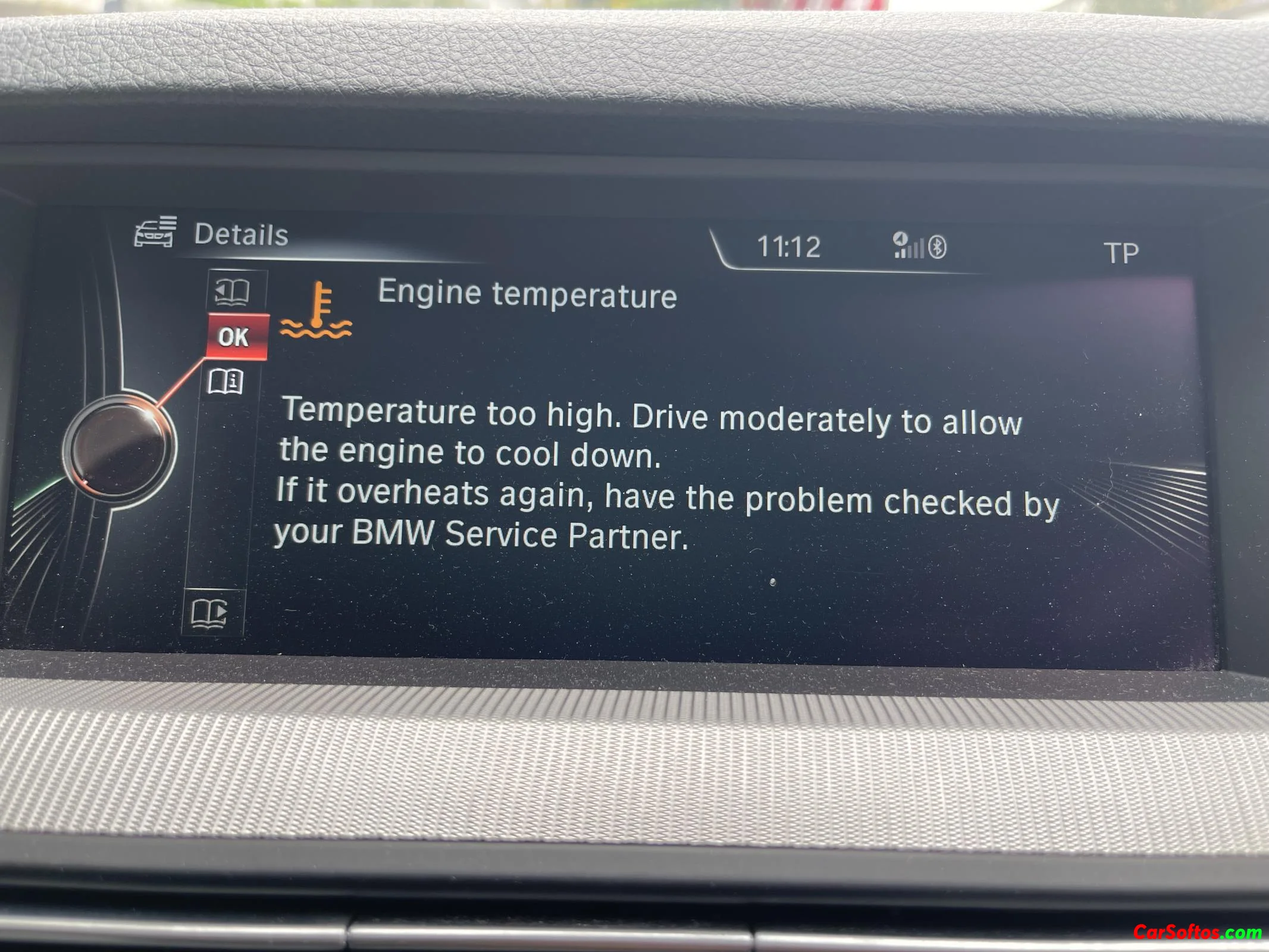

• engine overheating
• battery drain
• electrical failure
• no start

🧠 KEY INSIGHT (VERY IMPORTANT)

👉 BSD = shared communication system

👉 One faulty component can:

💥 break the entire system

🏁 Final Thoughts

The BMW BSD system connects critical components:

• battery
• alternator
• coolant pump
• oil sensor

👉 When it fails → multiple systems break at once
