How to remove the front and rear bumper Suzuki Grand Vitara 3 (Escudo) (2005-2016)

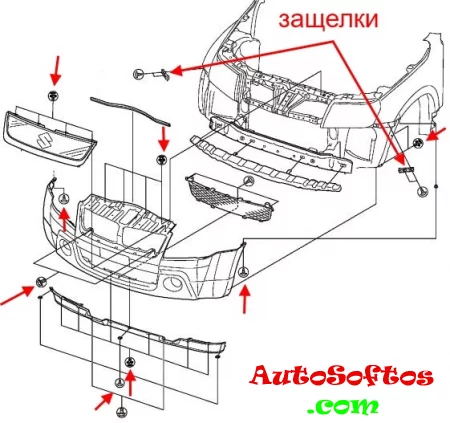

-open the hood.
-under the hood, pull out four pins that secure the upper part of the bumper and four that secure the radiator grille.
-pull the radiator grille up.
-unscrew two screws in the opening of the radiator grille.
-unscrew the screws and pull out the pins (screwed in and inserted from the bottom up), which secure the lower part.
-turn the wheels depending on which side we are going to disassemble.

-in the wheel arches we pull out the pins and release the fender liners.
-we move the fender liners to the side and unscrew one screw on each side (screwed from the bottom up), which secure the corners of the bumper to the fenders.
-with an assistant, carefully release the latches in the fenders (pull towards you).
-we pull the bumper forward (be careful not to tear the wires).
-we remove the connectors from the electrical equipment (if any).

Rear bumper

-open the trunk lid.
-unscrew the screws in the trunk opening and pull out the pins that secure the upper part.
-unscrew the screws around the perimeter of the lower part (screwed from bottom to top).
-unscrew the screws in the wheel arches that secure the fender liners.

- Behind the fenders, unscrew one screw on each side (screwed from the bottom up), which secure the corners of the bumper to the fenders.
- With an assistant, carefully release the latches in the fenders (pull towards you).
- pull the bumper back.
- disconnect the electrical equipment connectors (if any).
