How to remove the front and rear bumper of a VW T6 Transporter, Caravelle, Multivan

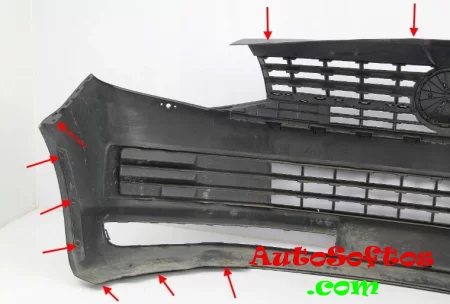

-open the hood.
-under the hood we take out the four pistons (one screw, if any) that secure the top of the bumper.
-from the bottom side, unscrew the screws (twisted from bottom to top) that secure the bottom of the bumper.
-turn the wheels to the side.
-in the wheel arches, unscrew the screws that secure the fender liners (front part).

-behind the fender liners, take out one piston on each side that secures the corners of the bumper to the wings.
-release the latches in the wings (pull the corners toward you).
-with an assistant, pull the bumper forward (watch the wires and hoses).
-we release the connectors of the electrical equipment (if any).
-disconnect the headlight washer hoses (if any, liquid may leak).

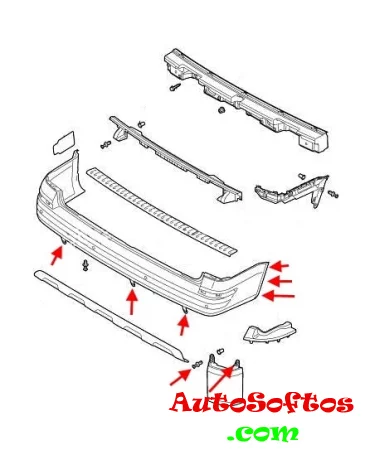

Rear bumper

-open the trunk lid (door).

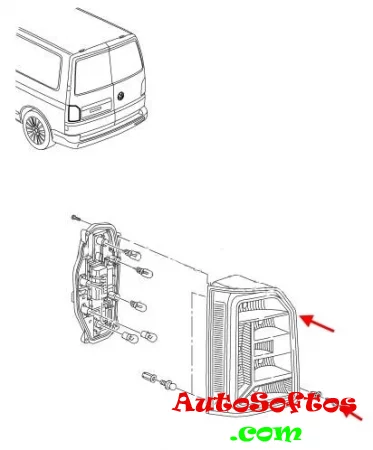

-in the trunk opening, unscrew two screws on each side and remove the rear lights.
-under the rear lights, pull out two pistons on each side and remove the trim upwards.
-from the bottom side, unscrew three screws (twisted from bottom to top).

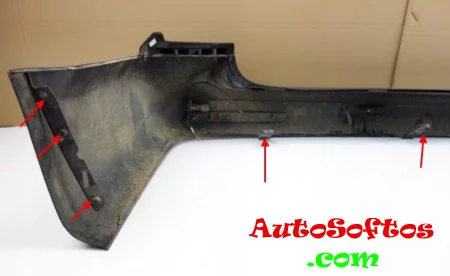

-in the wheel arches, unscrew three screws on each side that secure the fender liners (rear part).
-release the latches in the wings (pull the corners of the bumper towards you).

-release the latches in the trunk opening.
-with an assistant, pull the bumper back (watch the wires).
- disconnect the connectors of the electrical equipment (if any).
