P0087 Code Explained: Fuel Rail/System Pressure Too Low — Full Diagnostic & Repair Guide

P0087 – Fuel Rail/System Pressure Too Low

This code means the engine control module (ECM) has detected that fuel pressure in the rail is below the required threshold.

In simple terms:

The engine is not receiving enough fuel pressure to operate correctly.

This can cause:

• lean conditions

• misfires

• hesitation

• engine stalling

🔬 How the ECU Detects Low Fuel Pressure

Modern vehicles monitor:

• fuel rail pressure sensor

• target vs actual fuel pressure

• engine load

• injector pulse width

If actual pressure drops below commanded pressure under certain conditions, the ECM sets P0087.

On direct injection engines, pressure differences can be dramatic (up to 2000+ PSI).

🚨 Why P0087 Is a Serious Code

Low fuel pressure can lead to:

• sudden power loss

• engine stalling

• lean combustion

• overheating

• catalytic converter damage

In turbocharged engines, this can become dangerous quickly.

🔎 Most Common Causes of P0087

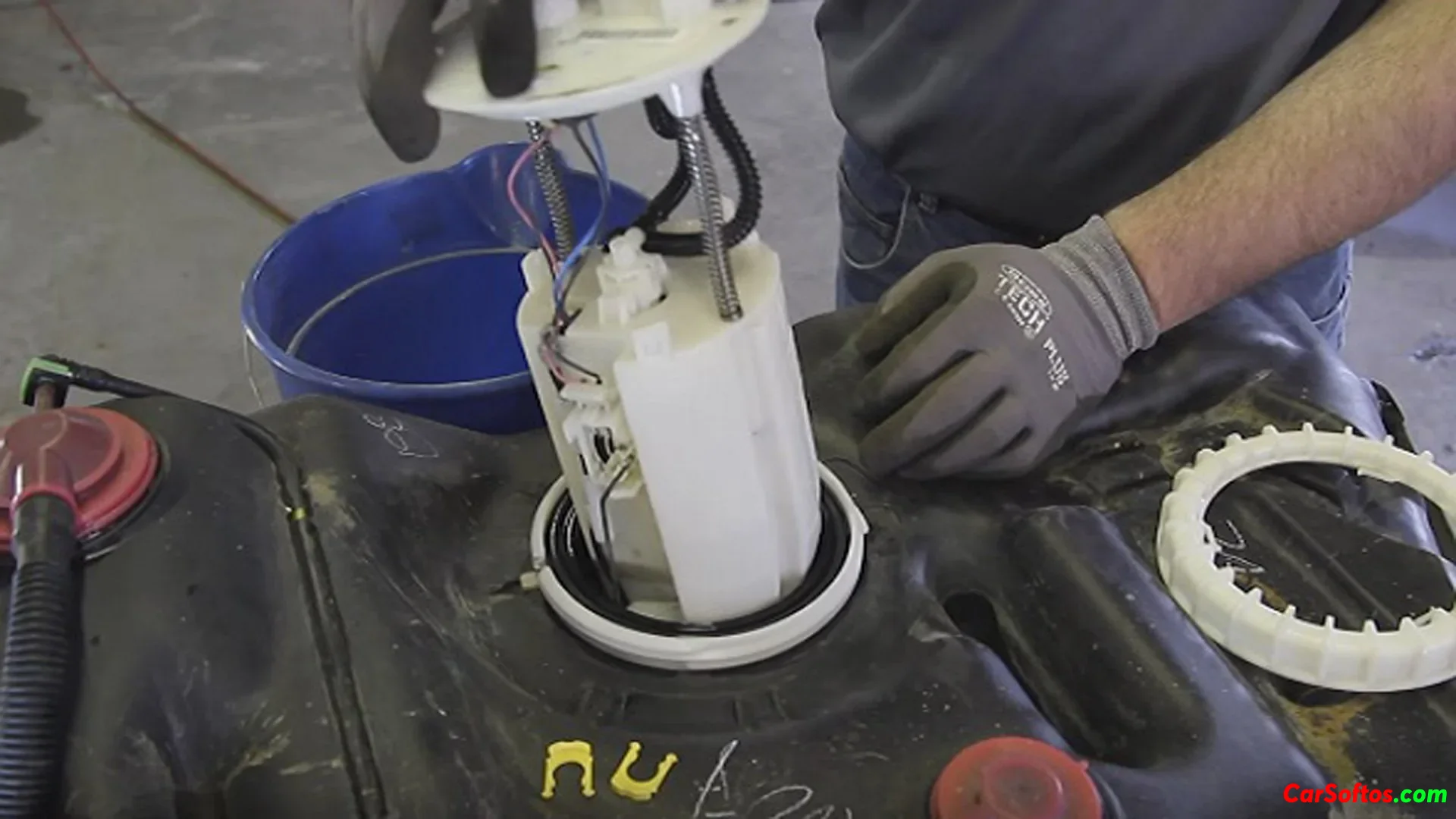

1️⃣ Weak or Failing Fuel Pump (Most Common)

As pumps age:

• pressure drops under load

• vehicle hesitates during acceleration

• misfires may occur

High mileage is a major risk factor.

2️⃣ Clogged Fuel Filter

Restricted flow reduces pressure reaching the rail.

More common on older return-style systems.

3️⃣ Faulty Fuel Pressure Regulator

If regulator sticks open:

• pressure bleeds off

• rail pressure drops

• lean condition develops

4️⃣ High-Pressure Fuel Pump Failure (Direct Injection Engines)

DI engines use:

• low-pressure pump in tank

• high-pressure pump driven by camshaft

If HPFP fails:

• P0087 often appears

• acceleration becomes weak

• turbo performance drops

Very common on modern turbo engines.

5️⃣ Faulty Fuel Rail Pressure Sensor

If sensor reports incorrect low pressure:

• ECU may reduce power

• limp mode may activate

Live data comparison confirms this.

6️⃣ Electrical Wiring Issues

Damaged wiring to pump or sensor can:

• cause intermittent low readings

• trigger random pressure drops

⚙️ Professional Diagnostic Strategy

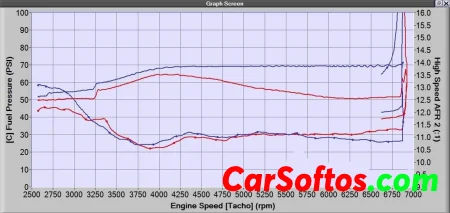

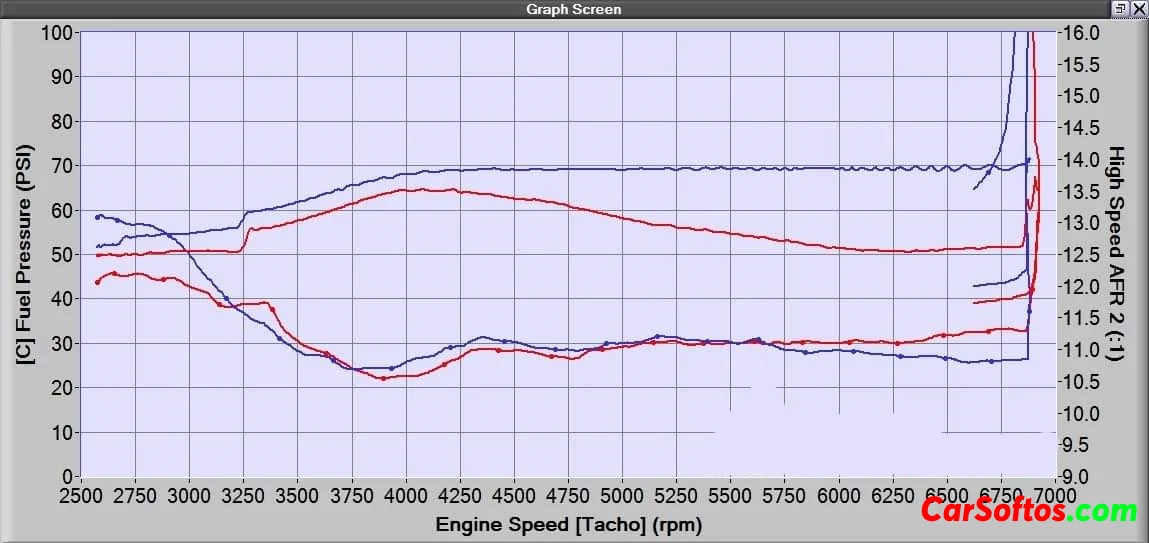

Step 1: Monitor Live Fuel Pressure Data

Check:

• commanded vs actual pressure

• pressure at idle

• pressure under load

If pressure drops during acceleration → pump likely weak.

Step 2: Check Fuel Trims

Low pressure often results in:

• high positive fuel trims

• lean codes (P0171 / P0174)

👉P0171 Code (Bank 1 Lean): Complete Diagnostic Guide to Fixing a Lean Engine Condition

👉P0174 Code (Bank 2 Lean): Why Your Engine Is Running Too Lean

Step 3: Load Test Fuel Pump

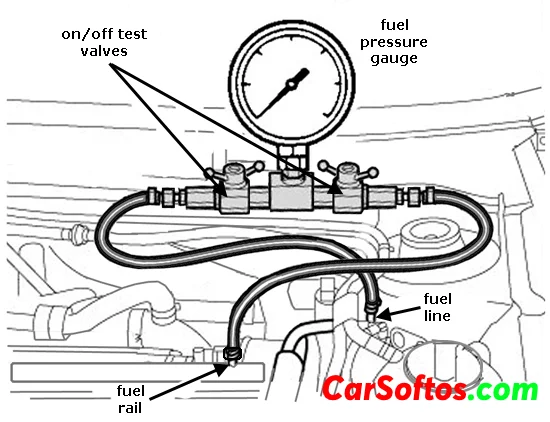

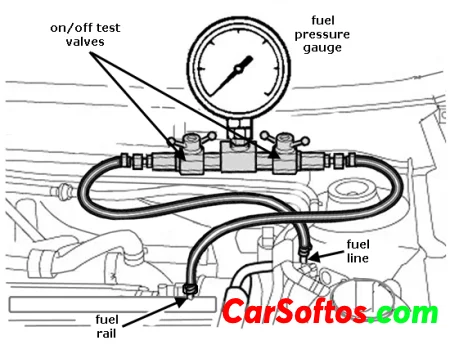

Use mechanical pressure gauge.

Compare specs at:

• idle

• 2500 RPM

• full load

Pressure should remain stable.

Step 4: Check for Related Codes

Often appears with:

• P0300 (misfire)

• P0171 (lean)

• P0191 (fuel rail pressure sensor)

Cluster diagnosis is critical.

🚨 Symptoms of P0087

• hesitation during acceleration

• loss of power

• engine stalling

• hard starting

• rough idle

• check engine light

Turbo engines may feel significantly underpowered.

💰 Repair Costs

• Fuel filter replacement: $100–300

• In-tank fuel pump replacement: $500–1500

• High-pressure fuel pump (DI engines): $800–2500+

• Fuel rail pressure sensor: $150–400

Luxury or European vehicles cost more.

❌ Common Diagnostic Mistakes

• Replacing injectors first

• Ignoring fuel trims

• Not testing pressure under load

• Assuming sensor failure without gauge test

• Replacing pump without checking electrical supply

📊 Quick Diagnostic Table

FAQ

Is P0087 serious?

Yes — it can cause stalling and power loss.

Can I drive with P0087?

Not recommended for long distances.

What is the most common cause?

Weak fuel pump.

Is repair expensive?

It can be, especially on direct injection engines.

Final Thoughts

P0087 indicates that the engine is not receiving sufficient fuel pressure.

It is not a code to ignore.

Correct diagnosis requires:

➡ Monitoring live rail pressure
➡ Testing pump performance
➡ Checking fuel trims
➡ Confirming sensor accuracy

Fuel system issues escalate quickly if untreated.
