P0171 Code (Bank 1 Lean): Complete Diagnostic Guide to Fixing a Lean Engine Condition

P0171 – System Too Lean (Bank 1)

This code means the engine control module (ECM) has detected too much air and not enough fuel on Bank 1.

Bank 1 is the side of the engine that contains cylinder #1.

On inline 4-cylinder engines, there is only one bank — so P0171 applies to the whole engine.

On V6/V8 engines:

• P0171 = Bank 1 lean

• P0174 = Bank 2 lean

👉 P0174 Code (Bank 2 Lean): Why Your Engine Is Running Too Lean

🔬 How the ECU Detects a Lean Condition

The ECU monitors:

• Upstream oxygen sensor

• Short-Term Fuel Trim (STFT)

• Long-Term Fuel Trim (LTFT)

• MAF airflow data

• Engine load & RPM

When LTFT rises above safe thresholds (often +20–25%), the ECU sets P0171.

Lean = excess oxygen in exhaust gases.

📊 Fuel Trim Deep Explanation (Google Loves This Section)

Normal Range:

• STFT: -10% to +10%

• LTFT: -10% to +10%

Lean Condition:

• STFT consistently positive

• LTFT above +15%

• Combined trims exceeding +25%

If trims normalize at higher RPM → likely vacuum leak.

If trims worsen under load → likely fuel delivery issue.

This distinction is critical.

🔎 The 6 Most Common Causes of P0171

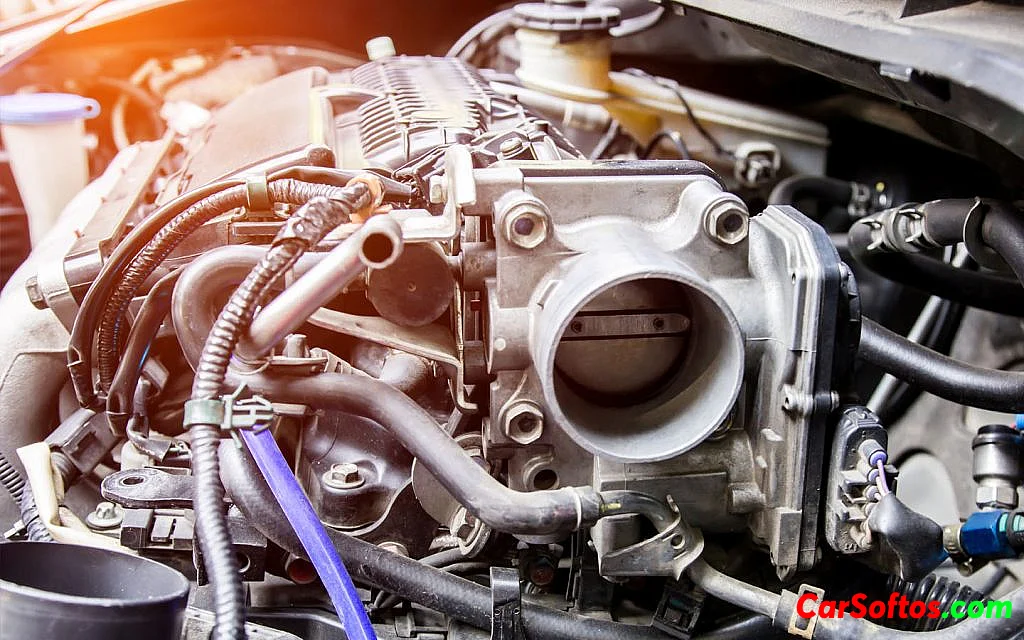

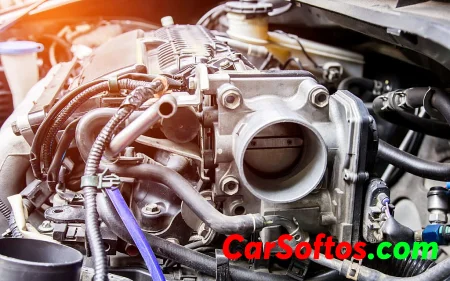

1️⃣ Vacuum Leak (Most Common Cause)

Unmetered air enters the engine after the MAF.

Typical signs:

• rough idle

• high positive trims at idle

• hissing sound

• trims improve at higher RPM

Common leak points:

• intake manifold gasket

• vacuum hoses

• PCV system

• brake booster hose

2️⃣ Dirty or Faulty MAF Sensor

If the MAF under-reports airflow:

• ECU injects too little fuel

• lean condition appears

If both P0171 and P0174 appear → strong MAF suspect.

👉 P0101 Code Explained: Why Your Engine Airflow Signal Doesn’t Make Sense (MAF Performance Deep Dive)

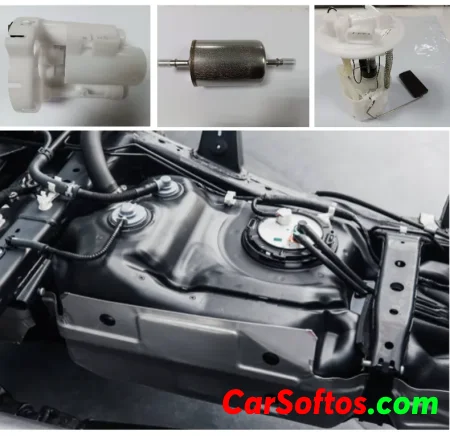

3️⃣ Low Fuel Pressure

Causes:

• weak fuel pump

• clogged fuel filter

• failing fuel pressure regulator

Symptoms:

• hesitation under load

• power loss on acceleration

• trims worsen at higher RPM

4️⃣ Clogged or Weak Fuel Injector

If injector on Bank 1 is restricted:

• that cylinder runs lean

• O2 sensor detects excess oxygen

• fuel trims increase

Injector balance test confirms this.

5️⃣ Exhaust Leak Before Upstream O2 Sensor

Fresh air enters exhaust stream → sensor reads lean.

Very often overlooked.

6️⃣ PCV System Failure

Stuck-open PCV valve acts like a vacuum leak.

Oil consumption often accompanies this.

⚙️ Professional Diagnostic Workflow

Step 1: Compare Idle vs 2500 RPM Fuel Trims

Idle lean only → vacuum leak.
Lean under load → fuel pressure issue.

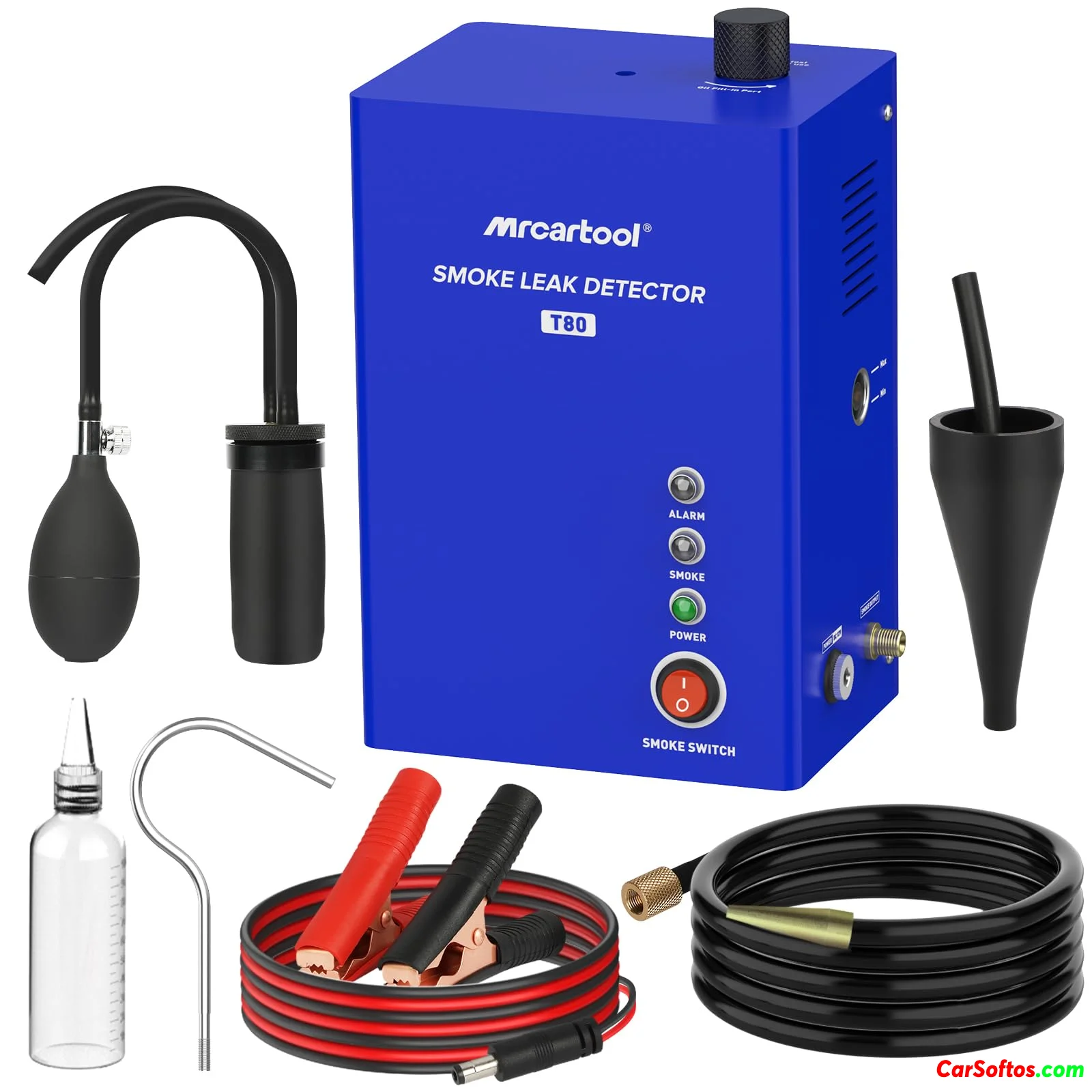

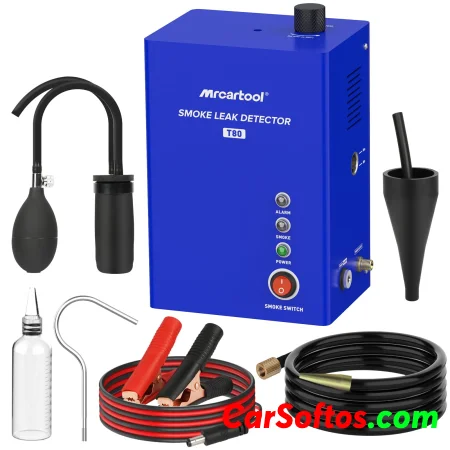

Step 2: Perform Smoke Test

Smoke testing reveals hidden air leaks.

This is one of the most reliable methods.

Step 3: Monitor O2 Sensor Switching

Upstream O2 should:

• switch rapidly between lean and rich

• not stay stuck lean

Flat sensor = possible sensor issue.

Step 4: Check Fuel Pressure Under Load

Lean under acceleration strongly indicates fuel delivery problem.

🚨 Symptoms of P0171

• rough idle

• hesitation

• engine stumbling

• misfire codes (P0300 series)

• poor fuel economy

• check engine light only

In early stages, drivability may seem normal.

💥 Why P0171 Should Not Be Ignored

Long-term lean condition can cause:

• overheating

• burned valves

• catalytic converter damage

• piston damage (rare but possible)

Lean combustion runs hotter.

💰 Repair Costs

• Vacuum leak repair: $50–300

• Intake manifold gasket: $200–600

• Fuel pump replacement: $500–1500

• Injector replacement: $150–500 each

• MAF replacement: $80–300

Cost depends entirely on root cause.

❌ Most Common Mistakes

• Replacing O2 sensors immediately

• Ignoring intake leaks

• Not checking fuel trims

• Replacing MAF without testing

• Clearing code repeatedly without diagnosing

📊 Quick Diagnostic Table

FAQ

Is P0171 serious?

Not immediately, but it can cause engine damage if ignored.

Can I drive with P0171?

Short-term yes, but diagnose soon.

Does P0171 mean O2 sensor is bad?

Usually no — it often reports a real lean condition.

What is the difference between P0171 and P0174?

P0171 = Bank 1 lean.
P0174 = Bank 2 lean.

Final Thoughts

P0171 is one of the most common and most misunderstood engine codes.

It does not automatically mean “replace parts.”

The correct approach:

➡ Analyze fuel trims
➡ Inspect for air leaks
➡ Test fuel delivery
➡ Confirm before replacing

Accurate diagnosis saves money and prevents catalytic converter damage.
