How to remove front and rear bumper Renault Megane 3 (2008-2015)

Author: carsoftos777 | 28-01-2023, 15:36 | How To Remove Bumpers | Views: 1 680 | Comments: 0 | Found a bug?


-open the hood.
-under the hood, Unscrew the six screws (spun down) that secure the top of the bumper.

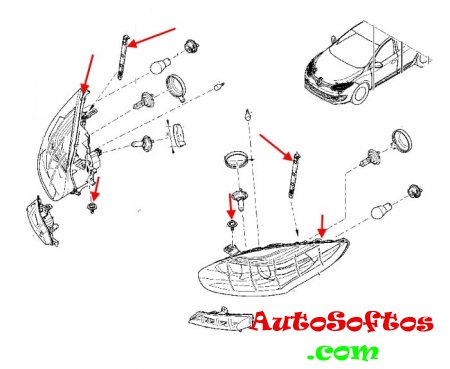

-Unscrew two screws on each side, pull up the metal clips and remove the headlights.
-Unscrew the five screws that secure the lower part of the bumper (spun up).
-depending on which side we will disassemble, turn the wheels.

-wheel arches Unscrew two screws on each side.
-move the fender liner to the side and Unscrew one screw on each side that attach the corners of the bumper to the wings.

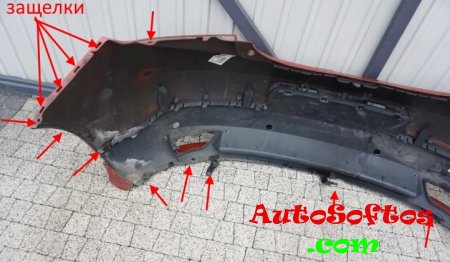

-we release the latch in the wings (pull the corners towards you).
-with an assistant, pull the bumper forward (be careful not to break the wires).
-disconnect electrical connectors (if any).

Rear bumper





-Open the trunk lid.
-in the side panels of the trunk, open the hatches and Unscrew the screws under them.
-take out the rear lights.
-under the rear lights take out the caps.
-from the bottom, Unscrew the seven screws.
-in the wheel wells, Unscrew the screws that secure the fender liner (rear).

-for the fender liner, Unscrew one screw on each side that attach the corners of the bumper to the wings.

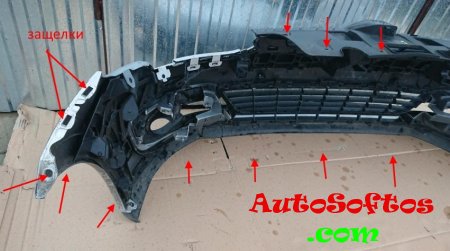

-we release the latch in the wings (pull the corners towards you).
-with an assistant, pull the bumper back (look for the wires).
-disconnect electrical connectors (if any).
