BMW 2A98 Fault — Timing Out of Sync (Full Diagnosis Guide)

The BMW 2A98 code indicates:

👉 A correlation error between the crankshaft and intake camshaft

In simple terms:

• The ECU knows where the crankshaft is
• It expects the intake camshaft to be in a specific position
• If timing is off → 2A98 is triggered

🧠 Why This Code Matters

This is NOT a simple sensor issue.

👉 It usually means:

⚠ timing is incorrect

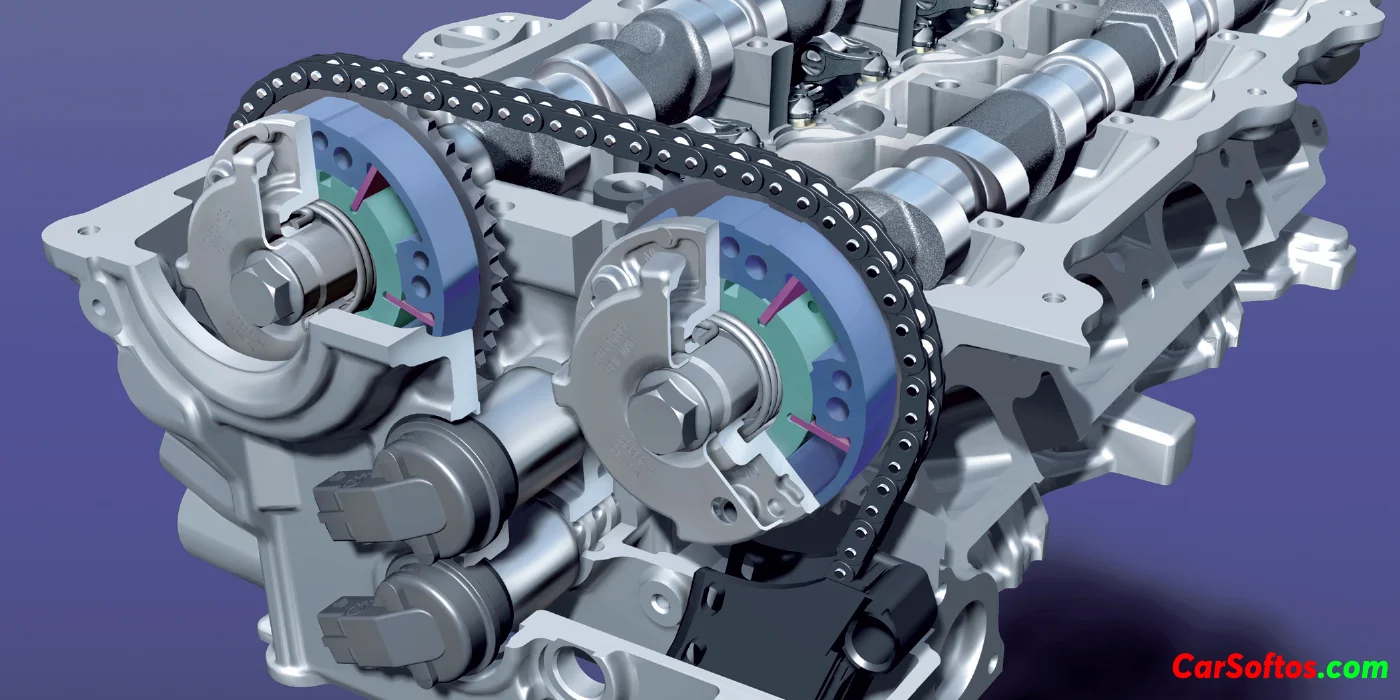

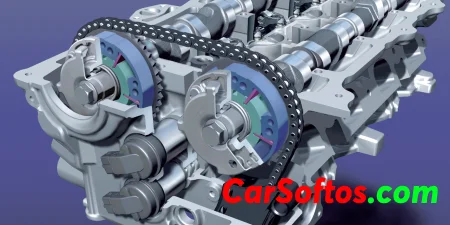

⚠ VANOS system malfunction
⚠ possible mechanical issue

⚠️ Common Symptoms of 2A98

• rough idle
• hesitation
• loss of power
• poor acceleration
• misfires
• increased fuel consumption
• Check Engine Light

🔧 Most Common Causes of BMW 2A98

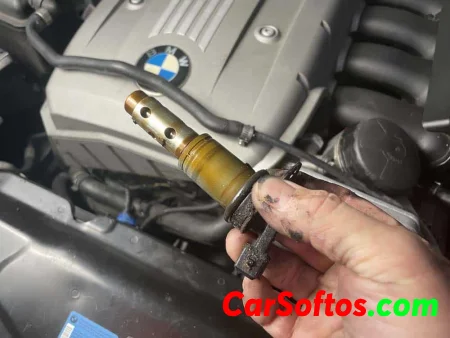

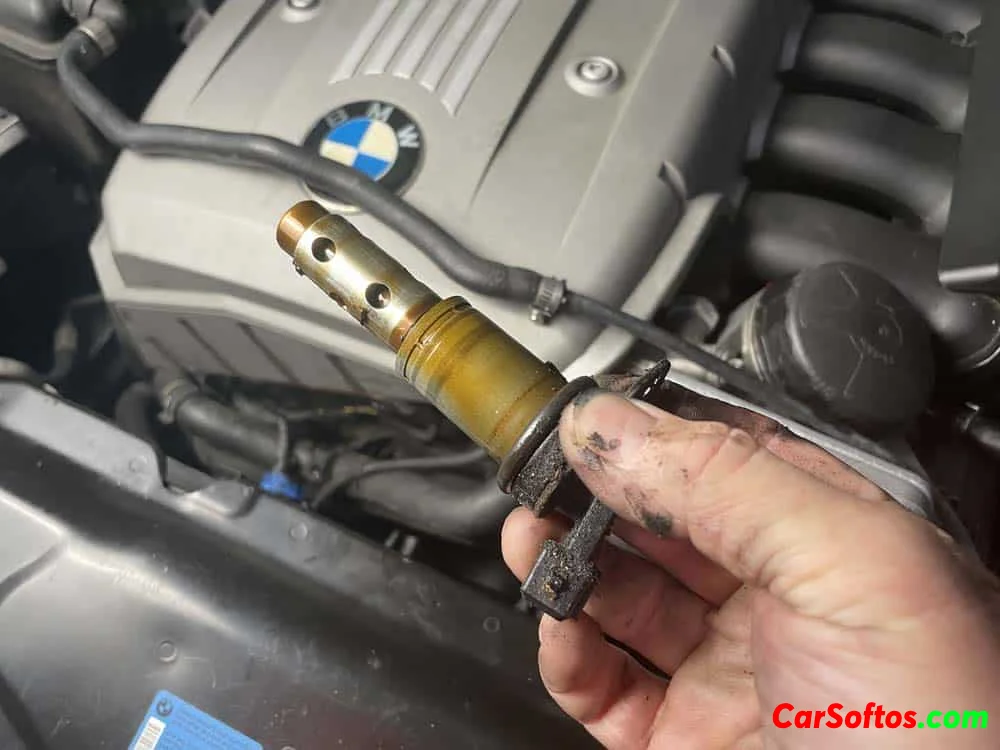

1️⃣ VANOS solenoid failure (VERY COMMON)

🔥 #1 cause

• clogged with oil sludge
• stuck or slow response

2️⃣ Dirty or poor-quality oil

👉 BMW VANOS is VERY sensitive to oil

• wrong oil
• infrequent oil changes

3️⃣ Timing chain wear

⚠ serious issue

• stretched chain
• worn guides

4️⃣ Camshaft position sensor

• incorrect signal
• ECU misinterprets timing

5️⃣ Low oil pressure

• VANOS cannot operate correctly

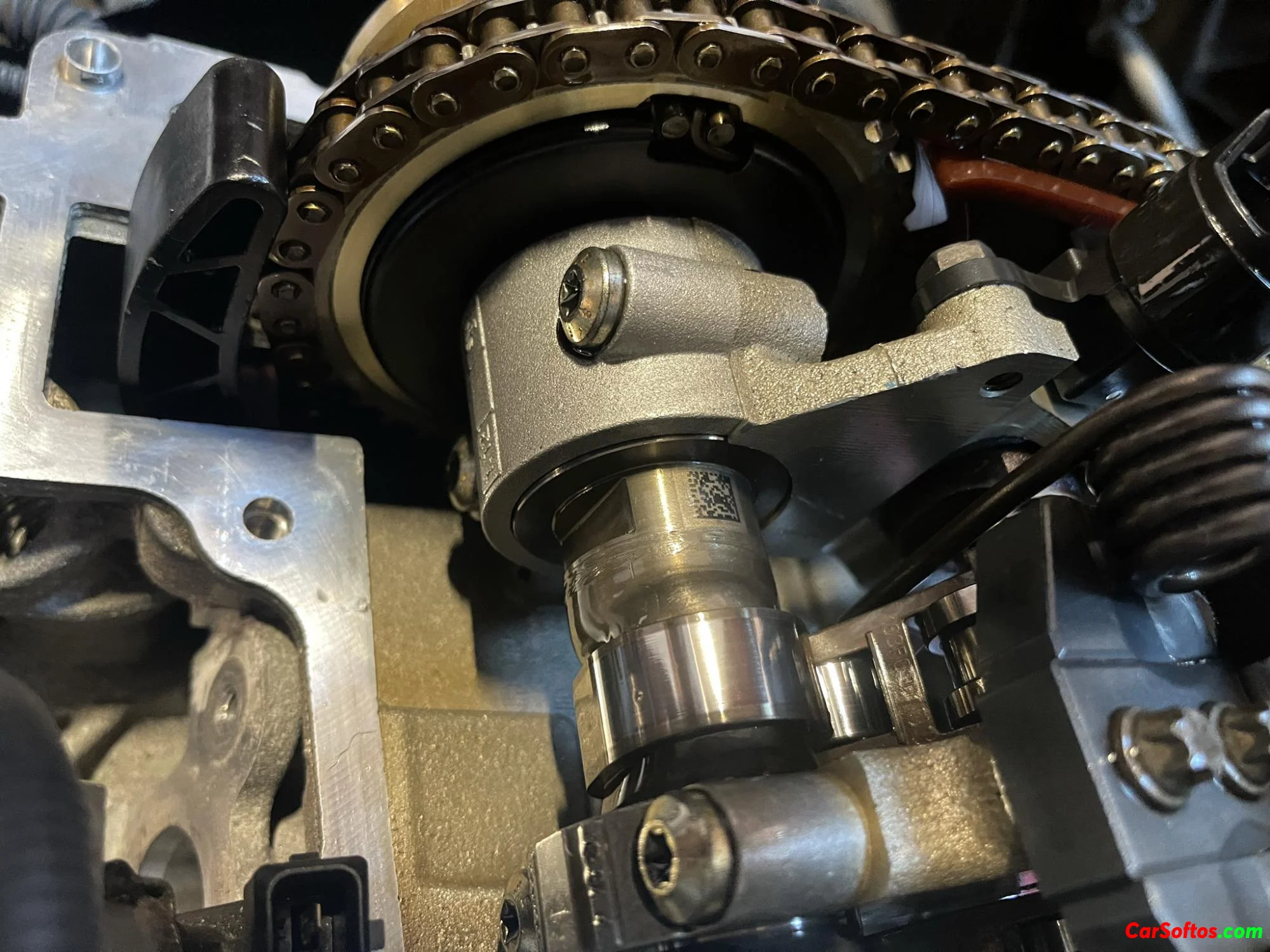

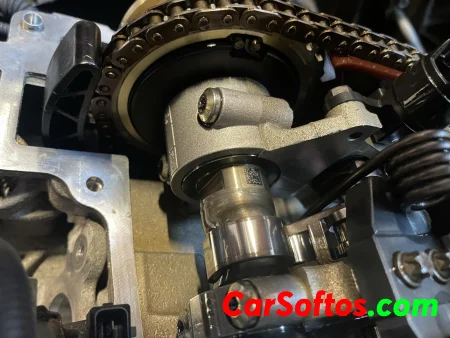

6️⃣ VANOS actuator failure

• internal wear
• mechanical fault

📊 Real Behavior of This Code

Typical pattern:

• timing deviation increases
• ECU tries to correct
• eventually exceeds limit → code appears

🔎 2A98 vs 2A99 (IMPORTANT)

👉 Often appear together

🔎 How to Diagnose BMW 2A98 (PRO LEVEL)

✔ Step-by-step:

1️⃣ Scan codes
2️⃣ Check oil condition
3️⃣ Clean/replace VANOS solenoids
4️⃣ Check camshaft sensor
5️⃣ Monitor VANOS angles (live data)
6️⃣ Inspect timing chain (if needed)

⚠️ Common Mistakes

❌ ignoring oil condition
❌ replacing sensors first
❌ missing timing chain wear

👉 Many cases solved by:

✔ oil change + VANOS cleaning

💰 Repair Cost

🚗 Can You Drive With 2A98?

⚠️ Short-term — yes

BUT:

• performance reduced
• risk of engine damage if timing worsens

🧠 Key Insight (VERY IMPORTANT)

👉 2A98 is often caused by oil issues

👉 Not always mechanical failure

🏁 Final Thoughts

The BMW 2A98 code indicates a timing mismatch between crankshaft and intake camshaft.

Most common causes:

• VANOS solenoid
• dirty oil
• timing chain wear
• camshaft sensor
