P174F Code — Valve 4 in Sub-Gearbox 2 Electrical Fault Causes, Symptoms, Diagnosis & How to Fix It

P174F is a manufacturer-specific transmission fault code, commonly found on:

• Audi
• Volkswagen
• DSG / S tronic gearboxes

👉 Specifically on:

• 0B5 / DL501 7-speed S tronic

👉 It means:

“Valve 4 in Sub-Gearbox 2 — Electrical Fault”

👉 In simple terms:

• The transmission control unit (TCU)
• detects a problem in
• ❌ one of the internal solenoid valve circuits

👉 This valve controls hydraulic pressure and clutch operation inside one half of the dual-clutch gearbox.

⚠️ How Serious Is P174F?

Severity: ⭐⭐⭐⭐⭐ (High)

• ❌ Gearbox malfunction warning
• ❌ Torque limitation
• ❌ Harsh / incorrect shifting
• ❌ Possible limp mode

👉 This is NOT a minor fault

🚨 Common Symptoms

• ⚠️ “Gearbox malfunction” message
• ⚠️ Reduced power
• ⚠️ Rough or jerky shifts
• ⚠️ Delayed engagement (D or R)
• ⚠️ Transmission goes into safe mode
• ⚠️ Intermittent → then permanent fault

🧠 Most Common Causes of P174F

1️⃣ Mechatronic Circuit Board Failure (MOST COMMON)

👉 Same root cause as P174B

• Internal PCB damage
• Contact loss
• Delamination

🔥 VERY common on 0B5

2️⃣ Solenoid Valve Electrical Fault

• Valve stuck
• Coil failure
• Internal short/open

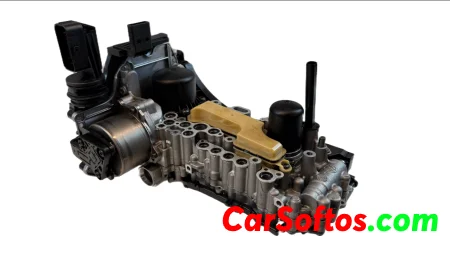

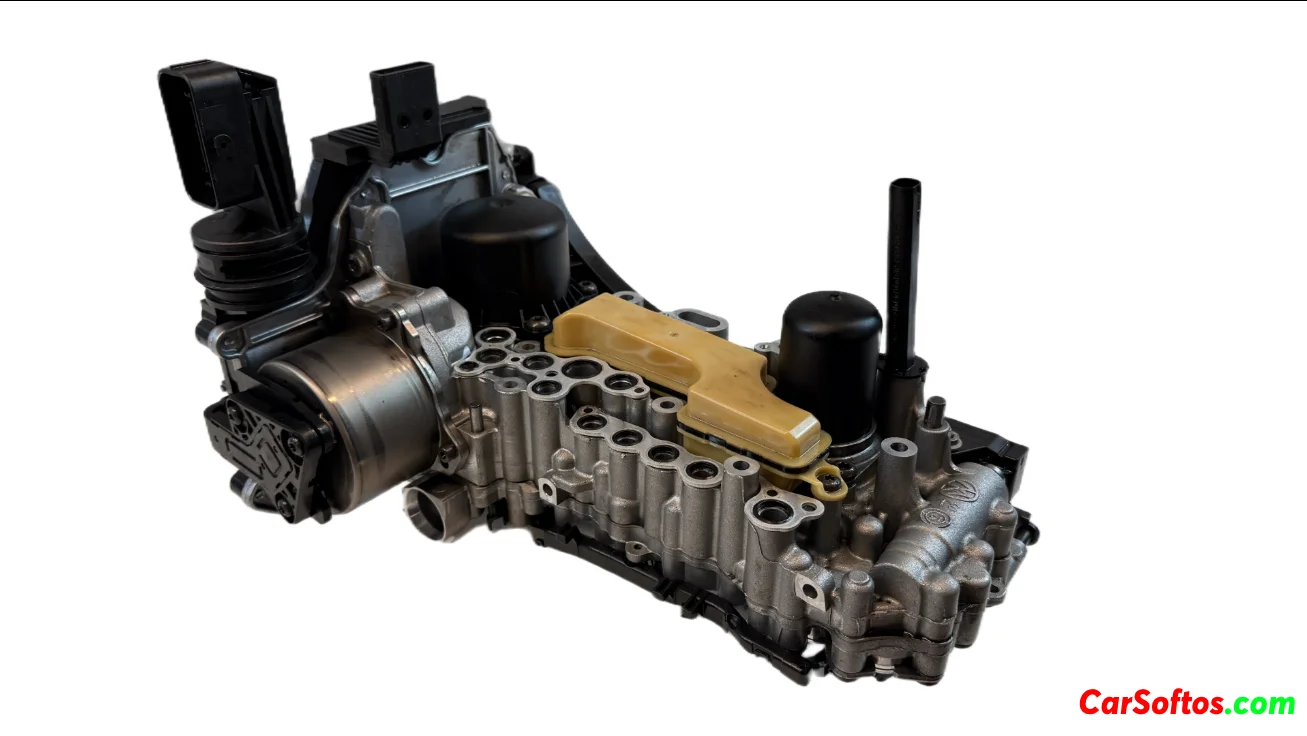

3️⃣ Full Mechatronic Unit Failure

• Sensor + valve + PCB combined issue
• Multiple codes appear

4️⃣ Internal Wiring / Connection Issue

• Internal harness fault
• Oil contamination

5️⃣ Secondary: Clutch / Pressure Issues

👉 Less common but possible:

• clutch wear
• pressure instability

🔧 Step-by-Step Diagnosis

1️⃣ Scan all transmission codes

👉 Look for:

• P174F
• P174B
• P179C / P179D
• P17D8
• P1740

👉 Multiple codes = mechatronic failure

2️⃣ Check fault frequency

• intermittent → early stage
• constant → serious failure

3️⃣ Evaluate gearbox behavior

• missing gears
• harsh shifting
• slipping

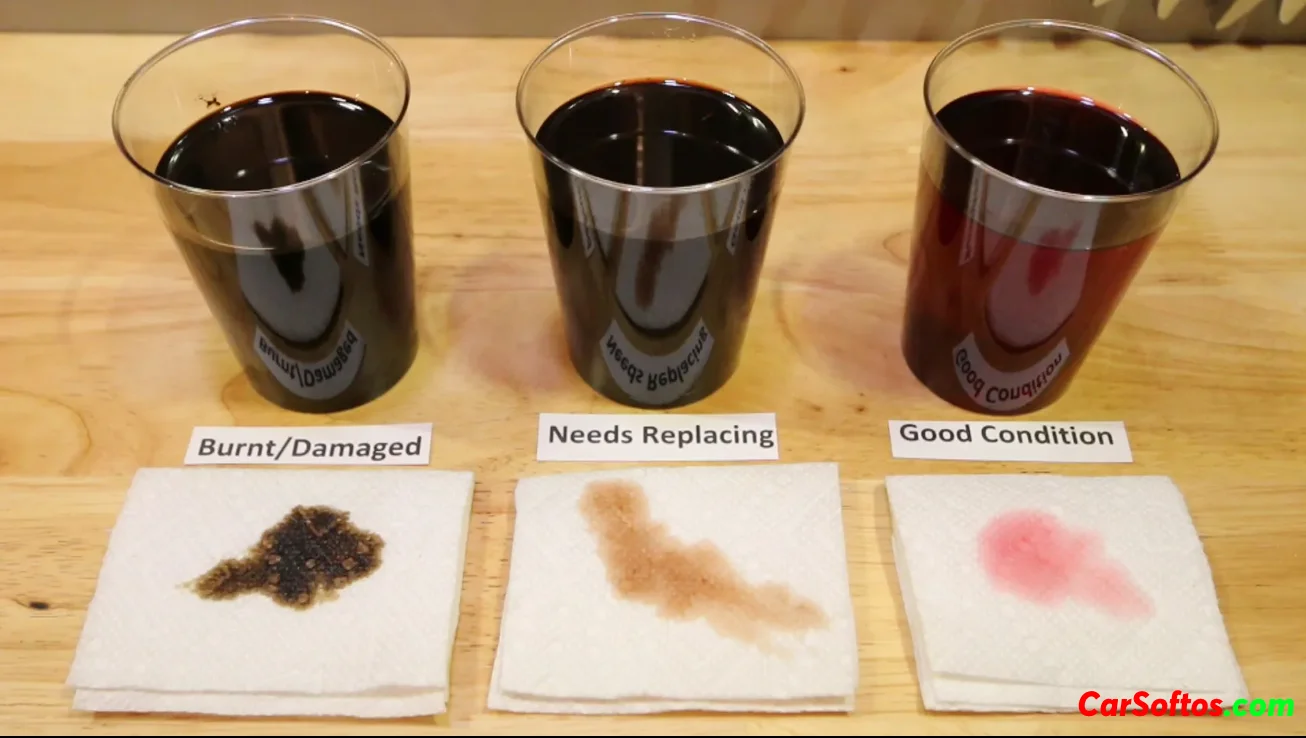

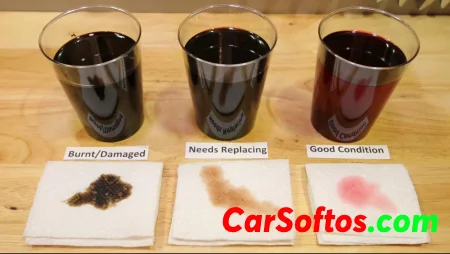

4️⃣ Check fluid condition

• burnt smell
• dark color

5️⃣ Compare with known Audi TSB pattern

👉 If cluster matches →
💥 Mechatronic PCB issue likely

🛠️ How to Fix P174F

✔️ Fix 1 — Mechatronic Circuit Board Repair

👉 MOST COMMON FIX

• Replace PCB / foil
• Rebuild mechatronic

💰 $600 – $1500+

✔️ Fix 2 — Full Mechatronic Replacement

👉 If heavily damaged

💰 $1200 – $3000+

✔️ Fix 3 — Wiring / Connector Repair

👉 Rare but possible

💰 $50 – $300

✔️ Fix 4 — Transmission Fluid Service

👉 Helps ONLY in early stages

💰 $150 – $400

💰 Repair Cost

❗ Common Mistakes

• ❌ Replacing clutch first
• ❌ Ignoring early warning
• ❌ Only clearing codes
• ❌ Not checking code cluster

👉 80% cases = mechatronic issue

⚖️ P174F vs Related Codes

🚗 Can You Drive With P174F?

👉 Short answer: YES (but risky)

• Short drive → OK
• Long-term → ❌ NO

👉 Risk:

• gearbox failure
• expensive repair

📊 Real-World Insight

👉 Typical causes:

• 70% → mechatronic PCB
• 20% → solenoid
• 10% → other

📌 Final Verdict

• Problem: Valve 4 electrical fault
• Main cause: mechatronic failure
• Difficulty: High
• Cost: $600 – $3000+
• Driveable: Limited
