P0403 Trouble Code — EGR Valve Electrical Problem (Wiring, Solenoid, ECU)

🔍 What Does P0403 Mean?

P0403 = EGR Control Circuit Malfunction

👉 This code means the engine control unit (ECU) has detected a problem in the electrical circuit that controls the EGR valve.

Unlike P0401 or P0402, this is NOT about airflow — it's аbout:

• voltage
• wiring
• solenoid control
• signal failure

⚙️ How the EGR Electrical System Works

The EGR system is controlled electronically:

1. ECU sends a signal
2. EGR solenoid / valve receives it
3. Valve opens/closes
4. Sensor sends feedback

👉 If any part of this circuit fails, P0403 is triggered.

⚠️ How Serious Is P0403?

Severity: ⭐⭐⭐☆☆ (Medium)

• Usually not immediately dangerous
• But can lead to:
  • EGR malfunction
  • increased fuel consumption
  • environmental problems

👉 Fix it soon — especially if combined with other EGR codes.

🚨 Common Symptoms

• Check Engine Light ON
• Slight rough idle
• Reduced fuel efficiency
• Engine hesitation (sometimes)
• Possible limp mode (rare)
• Often no strong symptoms at first

👉 Important:
Electrical faults can exist without obvious drivability issues

🧠 Main Causes of P0403

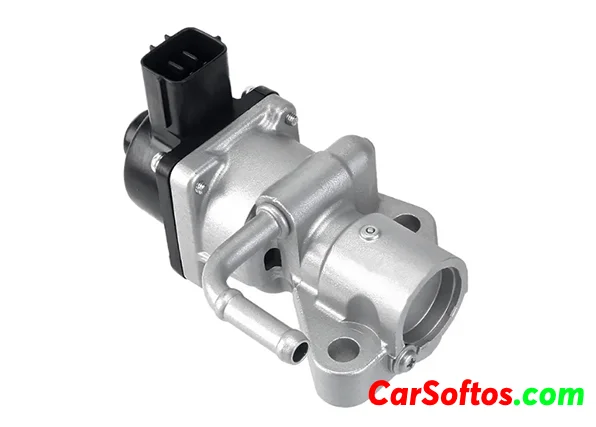

1️⃣ Faulty EGR Solenoid / Valve (Most Common)

• Internal electrical failure
• Coil burned
• No response from ECU

💰 Cost: $80 – $300

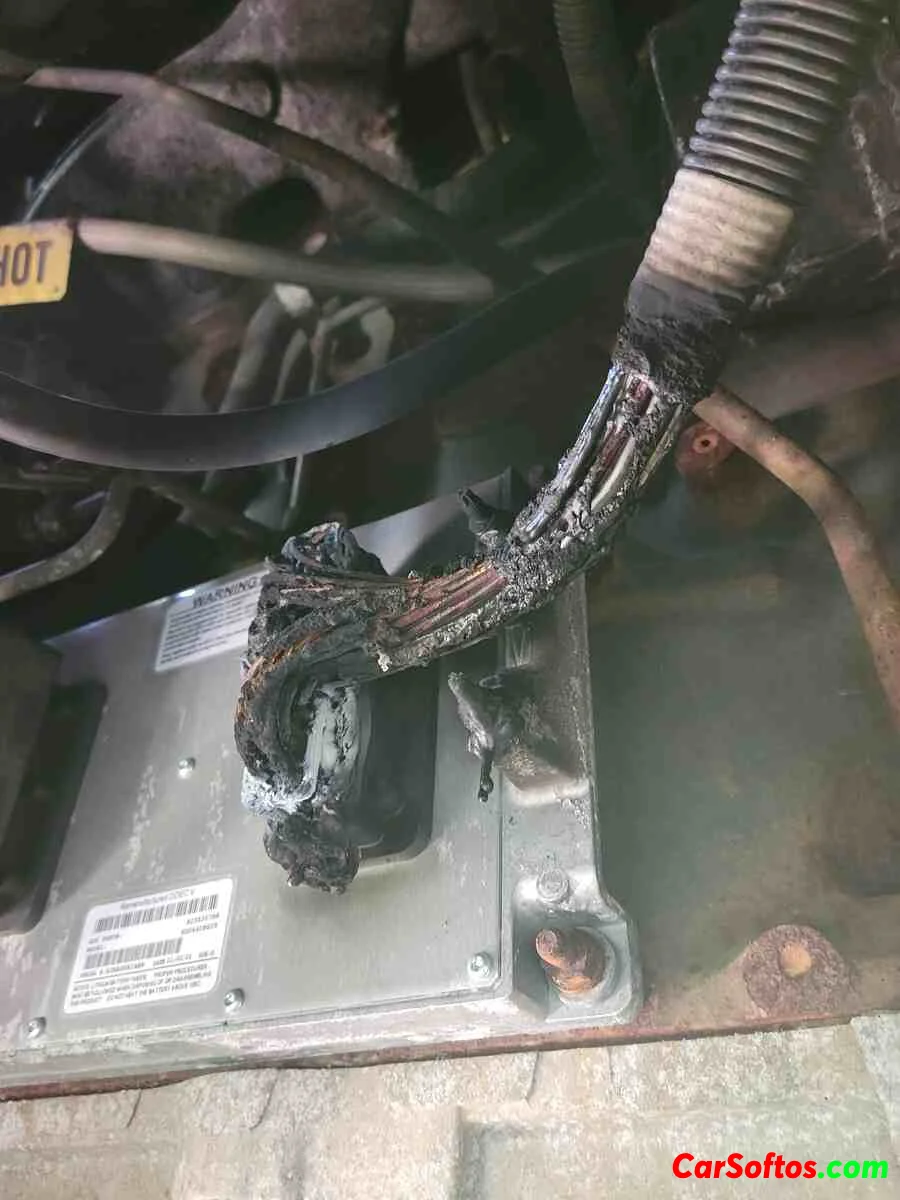

2️⃣ Damaged Wiring or Short Circuit

• Broken wires
• Short to ground or power
• Melted insulation

👉 VERY common in older cars

💰 Repair: $20 – $150

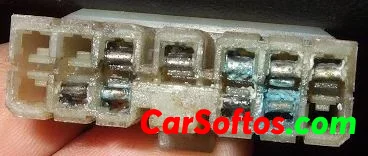

3️⃣ Corroded or Loose Connector

• Moisture damage
• Oxidation
• Poor contact

4️⃣ Blown Fuse or Relay Issue

• No power to EGR circuit
• ECU cannot control valve

5️⃣ ECU / PCM Failure (Rare)

• Internal driver failure
• No output signal

👉 Rare but expensive

🔧 Step-by-Step Diagnosis

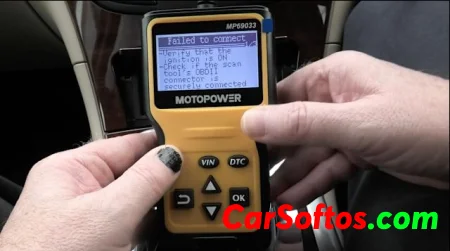

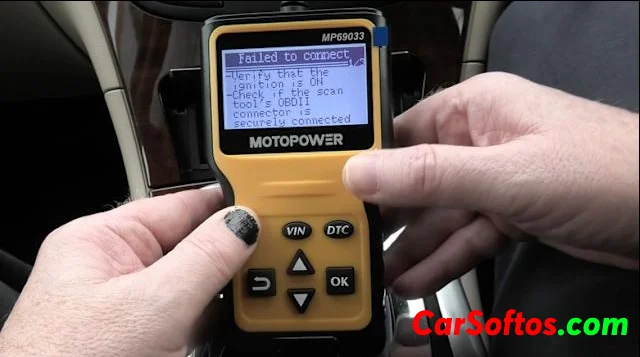

1️⃣ Scan the Vehicle

Check:

• P0403 present
• Related codes (P0400–P0405)
• Freeze frame data

2️⃣ Check Voltage at EGR Connector

• Turn ignition ON
• Measure voltage

👉 Expected:

• 5V reference OR 12V (depends on system)

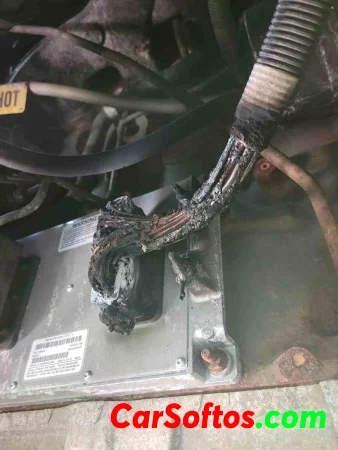

3️⃣ Inspect Wiring

• Look for:
  • broken wires
  • melted insulation
  • corrosion
  • bad contacts

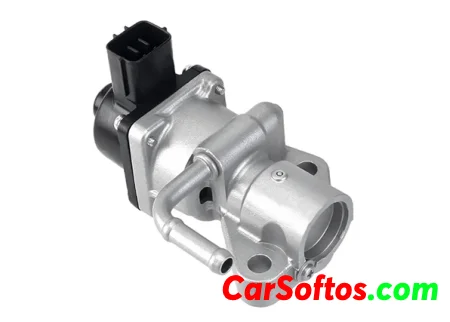

4️⃣ Test EGR Solenoid

• Use multimeter
• Check resistance
• Compare with spec

👉 If no resistance → coil burned

5️⃣ Check Continuity

• Test wire from ECU to EGR
• Ensure no open circuit

6️⃣ Check Ground Signal

• Poor ground = common hidden issue

🛠️ How to Fix P0403

✔️ Easy Fixes

• Clean connector
• Repair wiring
• Replace fuse

✔️ Main Repairs

• Replace EGR solenoid
• Replace EGR valve (if integrated)
• Repair harness
• Replace connector

✔️ Advanced Fix

• ECU repair or replacement

💰 Repair Cost Breakdown

❗ Common Mistakes

• ❌ Replacing EGR valve without checking wiring
• ❌ Ignoring connector corrosion
• ❌ Not checking fuse
• ❌ Skipping voltage test

👉 Electrical diagnosis = MUST

⚖️ P0403 vs Other EGR Codes

🚗 Can You Drive With P0403?

👉 Yes, usually

But:

• ❌ System may not work correctly
• ❌ Emissions increase
• ❌ Other codes may appear

👉 Fix within a reasonable time

📊 Real-World Insight (Important)

👉 In many cases:

• 60% → wiring / connector
• 30% → EGR valve/solenoid
• 10% → ECU

🚀 Final Verdict

• Problem: Electrical fault in EGR circuit
• Most common cause: Wiring or solenoid
• Difficulty: Medium
• Cost: $20 – $400
• Driveable: Yes (short-term)
