P0740 Code Explained: Torque Converter Clutch Circuit Malfunction (Full Transmission Guide)

P0740 – Torque Converter Clutch (TCC) Circuit Malfunction

This code means the transmission control module (TCM) has detected a problem with the torque converter clutch system.

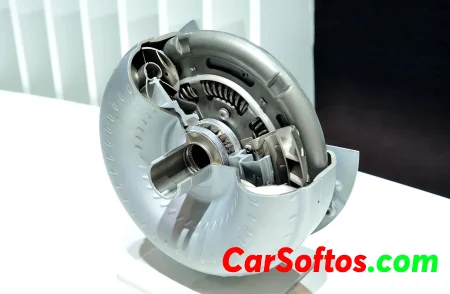

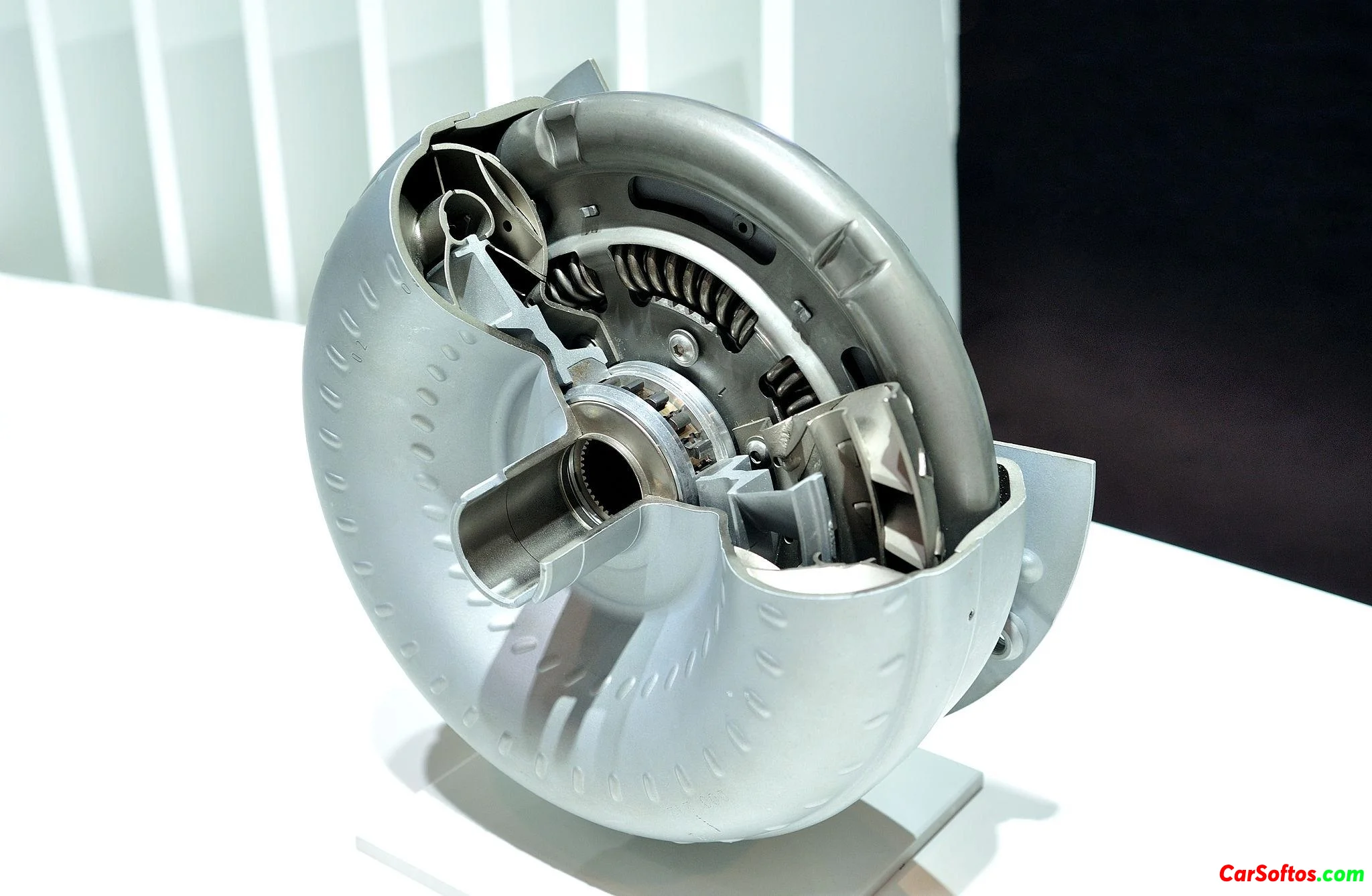

The torque converter clutch (TCC):

• locks the converter at cruising speeds

• improves fuel economy

• reduces heat

• improves power transfer

If the clutch cannot engage or disengage properly → P0740 is triggered.

🔬 What the Torque Converter Clutch Does

At low speeds:

• Torque converter allows slip.

At highway speed:

• TCC locks the converter.

• Engine RPM drops.

• Fuel efficiency improves.

If lockup fails:

• RPM may stay higher than normal.

• Transmission may overheat.

• Slipping may occur.

🚨 Symptoms of P0740

Common signs include:

• RPM fluctuates at highway speed

• Transmission slipping

• Delayed shifting

• Overheating transmission

• Check engine light

• Possible limp mode

In severe cases:

• Vehicle may not move properly.

🔎 Most Common Causes of P0740

1️⃣ Failed Torque Converter Clutch Solenoid

Internal solenoid controls fluid pressure to engage lockup.

Electrical failure is common.

2️⃣ Dirty or Burnt Transmission Fluid

Contaminated fluid can:

• block hydraulic passages

• prevent proper lockup

• overheat system

Fluid condition is critical.

3️⃣ Internal Torque Converter Failure

If clutch material wears out:

• lockup cannot engage

• slipping increases

• heat builds rapidly

This requires converter replacement.

4️⃣ Wiring or Electrical Issues

Damaged wiring to TCC solenoid can trigger circuit malfunction.

5️⃣ Transmission Control Module (Rare)

Very rare, but possible.

⚠ Is P0740 Serious?

Yes — especially if:

• slipping is present

• transmission overheats

• fluid smells burnt

Driving too long can turn a $300 repair into a $3000 rebuild.

⚙ Professional Diagnostic Process

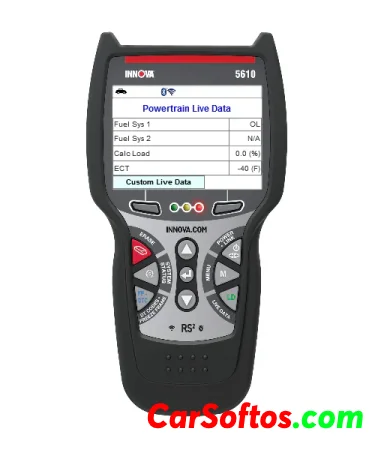

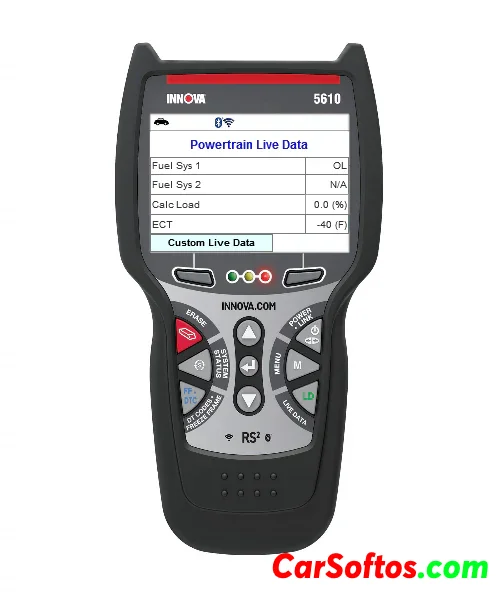

Step 1: Scan for Additional Transmission Codes

Often appears with:

• P0700

• P0750–P0770

• P0715

Always check TCM codes.

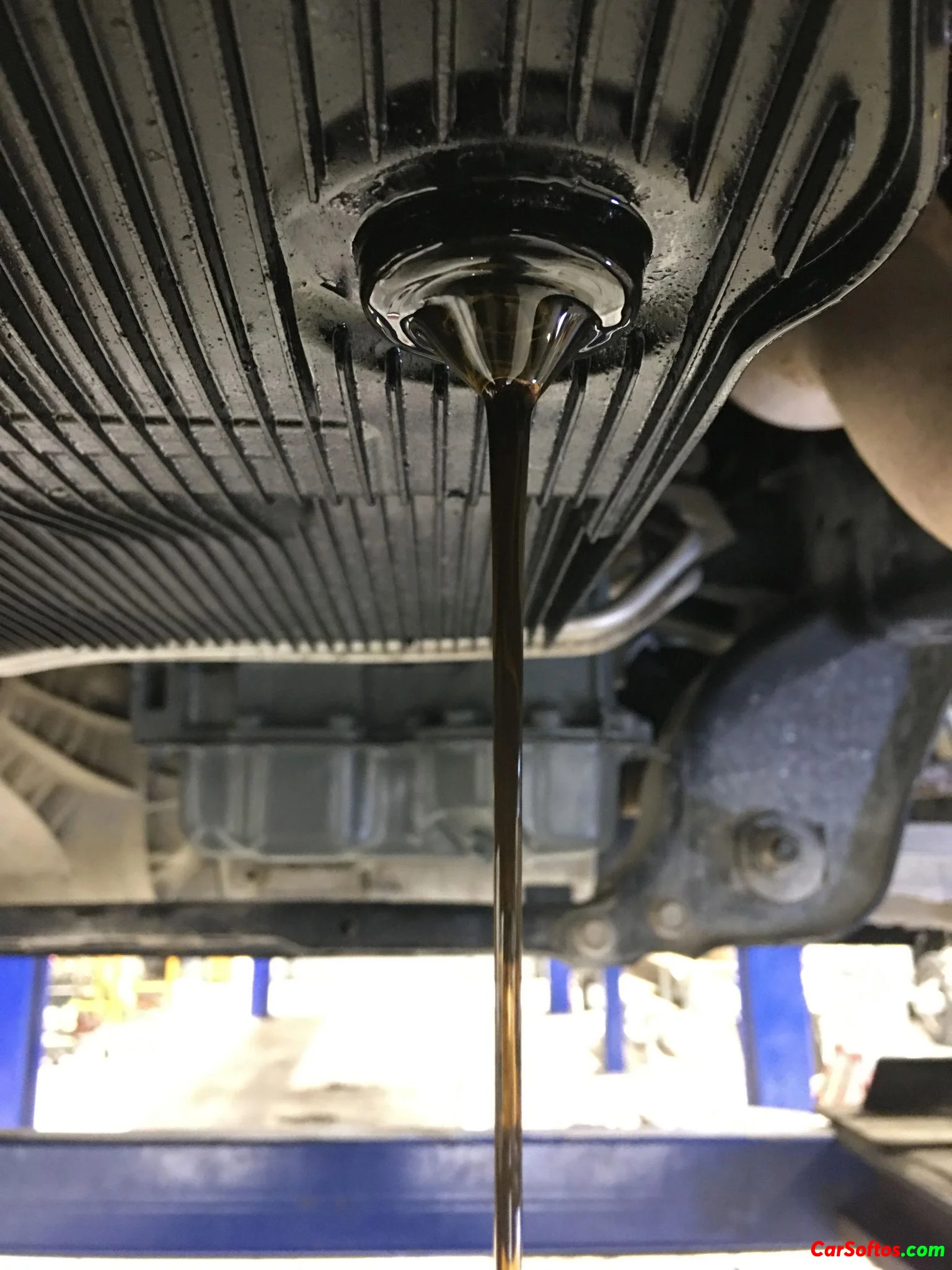

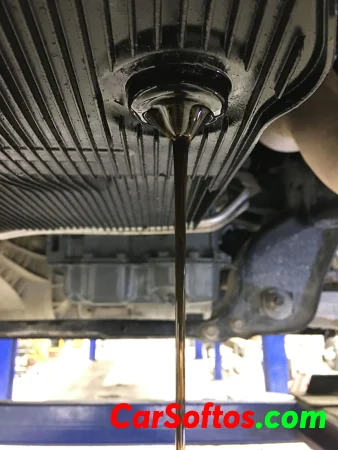

Step 2: Check Transmission Fluid Condition

If fluid is:

• dark

• smells burnt

• contains debris

Internal damage may already exist.

Step 3: Monitor Lockup RPM Drop

At highway speed (steady cruise):

• RPM should drop slightly when lockup engages.

If RPM never drops → TCC may not be working.

💰 Repair Cost Range

• Transmission fluid service: $150–300

• TCC solenoid replacement: $300–800

• Torque converter replacement: $800–2000

• Full transmission rebuild: $2500–5000+

Luxury vehicles cost more.

❌ Common Mistakes

• Ignoring fluid condition

• Driving for months with slipping

• Replacing entire transmission without diagnosis

• Clearing code without testing

📊 Severity Table

FAQ

Can I drive with P0740?

Short-term possibly, but not recommended if slipping occurs.

Does P0740 mean I need a new transmission?

Not always. It may be fluid or solenoid related.

How long does a torque converter last?

Typically 150,000+ miles if maintained.

Is transmission flush safe?

Depends on mileage and fluid condition — improper flush can cause issues.

Final Thoughts

P0740 is not a code to ignore.

It signals a torque converter clutch issue — which affects fuel economy, heat management, and transmission longevity.

The safest approach:

➡ Check fluid condition
➡ Scan for additional codes
➡ Diagnose before replacing major components
➡ Avoid prolonged slipping

Early repair can prevent catastrophic transmission failure.
