Mercedes, Jaguar, Chrysler 722.6 5-Speed – ATSG

Mercedes 722.6 transmission made its first debut here in the United States in 1996. It is used behind 4,6,8 and 12 cylinder gasoline engines, as well as their diesel engines. It is their first completely computer controlled transmission and their first to have a transmission with a converter clutch.

This electronically controlled 5 speed automatic transmission consists of 3 compound planetaiy gear sets, 3 multiple disc driving clutches, 3 multiple disc brake clutches and 2 free-wheel clutches, with 5th gear being overdrive.

The Electronic Transmission Controller (ETC) controls transmission operation matching engine performance during the shift phase. The driver can choose between 2 driving programs, “S” for standard driving programs and “W” for winter driving programs. Winter option provides a second gear start and a higher gear ratio for a reverse movement. Standard mode provides a first gear take off and a lower reverse gearratio.

CONTENTS

TRANSMISSION IDENTIFICATION
GENERAL DESCRIPTION

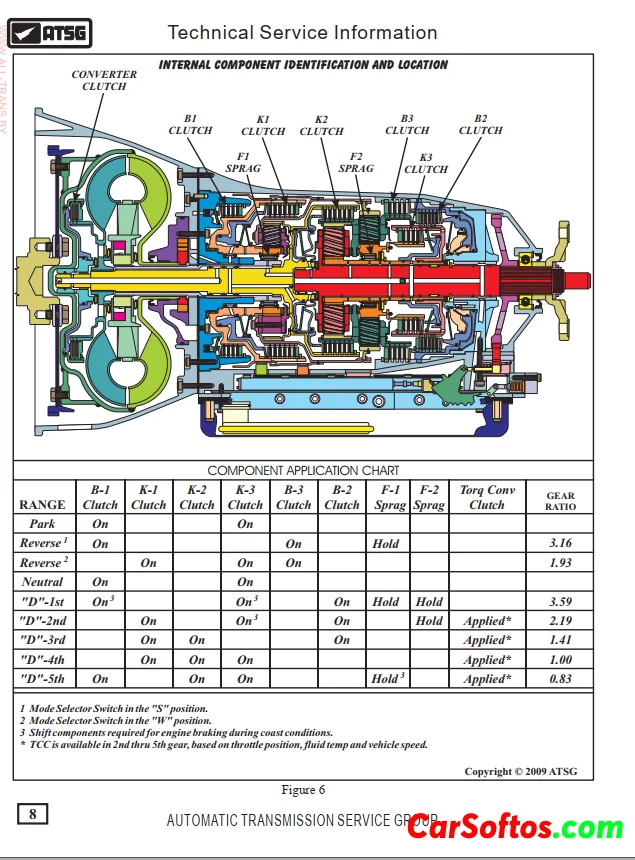

INTERNAL COMPONENT IDENTIFICATION AND LOCATIONS
SOLENOID APPLICATION CHART
FLUID REQUIREMENTS AND CHECKING PROCEDURE
OIL LEVEL CONTROL
SOLENOID LOCATIONS AND IDENTIFICATION
SOLENOID OPERATION
ELECTRICAL CONDUCTOR PLATE
CASE CONNECTOR TERMINAL IDENTIFICATION
PARK/NEUTRAL CONTACT AND FLUID TEMP SENSOR
N2 AND N3 INPUT SPEED SENSORS
TRANSMISSION CONTROL MODULE AND LOCATIONS
TCM CONNECTORS AND TERMINAL IDENTIFICATION
SOLENOID RESISTANCE CHART
SHIFT LEVER ASSEMBLY
TRANSMISSION RANGE RECOGNITION SWITCH
WIRING SCHEMATICS
DIAGNOSTIC TROUBLE CODE DESCRIPTION
TORQUE CONVERTER OPERATION
CHECKBALL AND SMALL PARTS LOCATIONS
HYDRAULIC PASSAGE IDENTIFICATION
F-1 AND F-2 FREEWHEEL DIRECTIONS
TRANSMISSION DISASSEMBLY
COMPONENT REBUILD
TRANSMISSION CASE ASSEMBLY
CONVERTER HOUSING, OIL PUMP AND B-1 CLUTCH ASSEMBLY
K-1 CLUTCH HOUSING ASSEMBLY (INCLUDES F-1 SPRAG)
K-2 CLUTCH HOUSING ASSEMBLY
GEARTRAIN IDENTIFICATION AND POSSIBLE TOOTH COUNTS
CENTER AND REAR PLANETARY GEARTRAIN ASSEMBLY (INCLUDES F-2)
K-3 CLUTCH HOUSING ASSEMBLY
B-2 CLUTCH HOUSING ASSEMBLY
VALVE BODY ASSEMBLY
TRANSMISSION FINAL ASSEMBLY
TORQUE SPECIFICATIONS
