Chrysler 42LE (A606) – ATSG

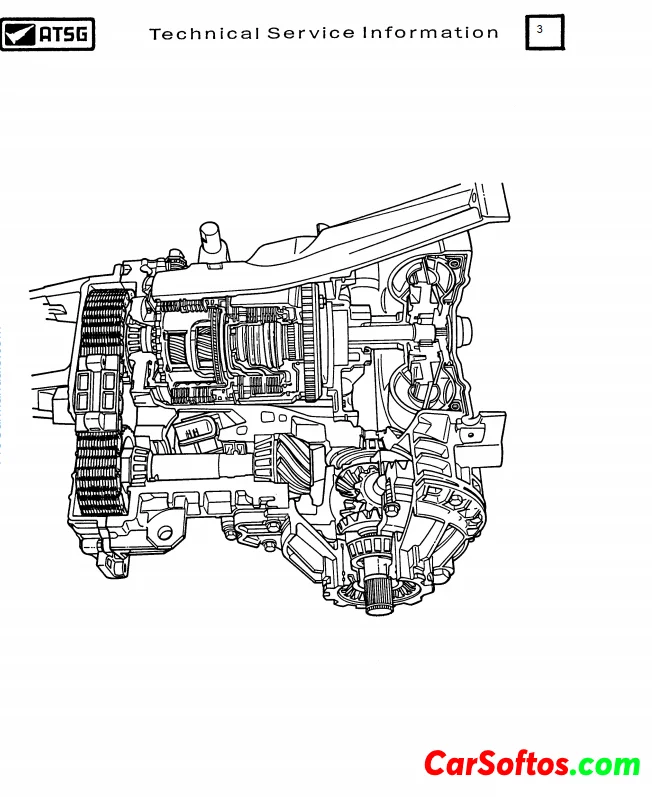

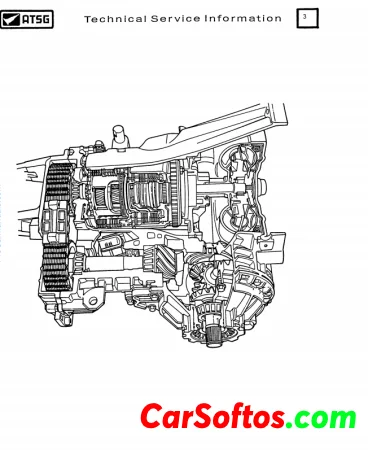

42LE 4-speed transaxle has many similarities to the A-604. Both units are fully electronic controlled. The 42LE is mounted in the vehicle in the same fashion as rear drive transmissions.

That is Longitudinally, whereas the A-604 is transverse mounted. Since the front axle of the vehicle passes through the bell housing, the pump support (stator) shaft and the turbine shaft are longer than the A604. This unit is unique in that it has two sumps, one for the transmission fluid and one for the differential fluid.

The PRNDL and Neutral Safety Switches are mounted on the valve body inside the transaxle case. There is a chain drive from the output shaft to the pinion shaft in a similar manner that we have seen on other transaxles.

Applications:

1999-2004 Chrysler 300M
1993-2004 Chrysler Concorde
1994-2001 Chrysler LHS
2001-2002 Chrysler Prowler
1994-1996 Chrysler New Yorker
1993-2004 Dodge Intrepid
1993-1997 Eagle Vision
1997-2001 Plymouth Prowler

CONTENTS

IDENTIFICATION – OPERATION
BASIC CHECKS
STUB SHAFT SEAL REPLACEMENT
VALVE BODY REMOVAL
TRANSAXLE REMOVAL
TRANSAXLE TEARDOWN
BEARING PRELOAD
CLUTCH CLEARENCE
DRUM ASSEMBLY
INPUT SHAFT END PLAY
TRANSFER CHAIN
REAR HOUSING TEARDOWN
DIFFERENTIAL CHECKS
ONBOARD DIAGNOSIS
POWER FLOW CHART
SPECIFICATIONS
