Chrysler A500 Transmission Repair Manual – ATSG

ATSG Repair Manual For The Chrysler Dodge A500 Transmissions. Covers many Dodge / Chrysler domestic vehicles between 1989 to 1992. Content includes transmission assembly, dis-assembly, diagnosis, and troubleshooting. This style transmission has a governor assembly on the output shaft.

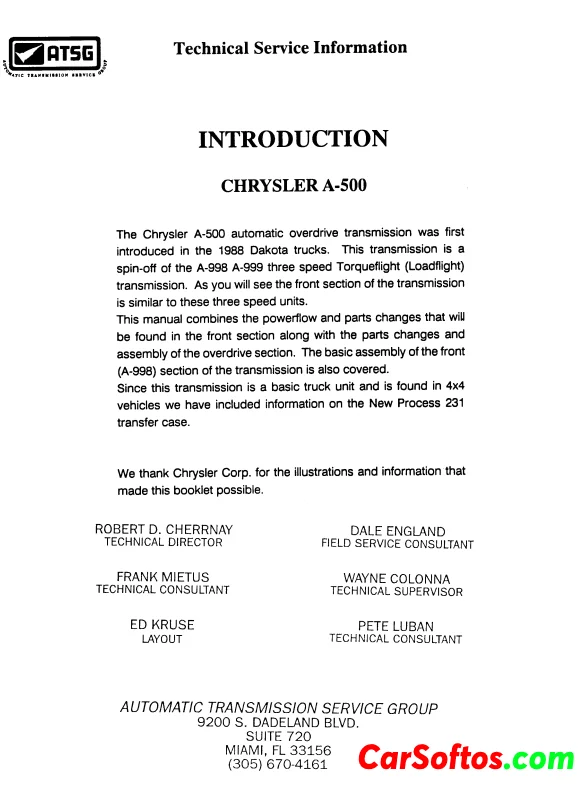

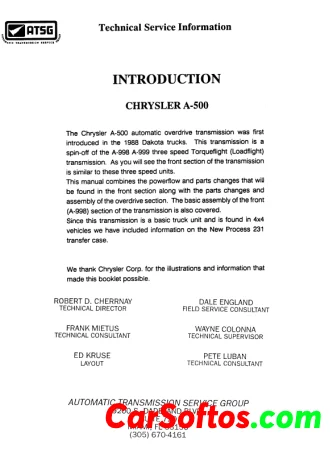

The Chrysler A-5Q0 automatic overdrive transmission was first introduced in the 1988 Dakota trucks. This transmission is a spin-off of the A-998 A-999 three speed Torqueflight (Loadflight) transmission. As you will see the front section of the transmission is similar to these three speed units.

The basic assembly of the front (A-998) section of the transmission is also covered. Since this transmission is a basic truck unit and is found in 4×4 vehicles we have included information on the New Process 231 transfer case.

CONTENTS

A-500 PARTS LIST
OIL SCHEMATICS
POWER FLOW
DESCRIPTION
GENERAL INFORMATION
TROUBLE SHOOTING
TEARDOWN FRONT SECTION
TEARDOWN OVERDRIVE
TECH BULLETINS
TRANSFER CASE

Language: English
Format: PDF
