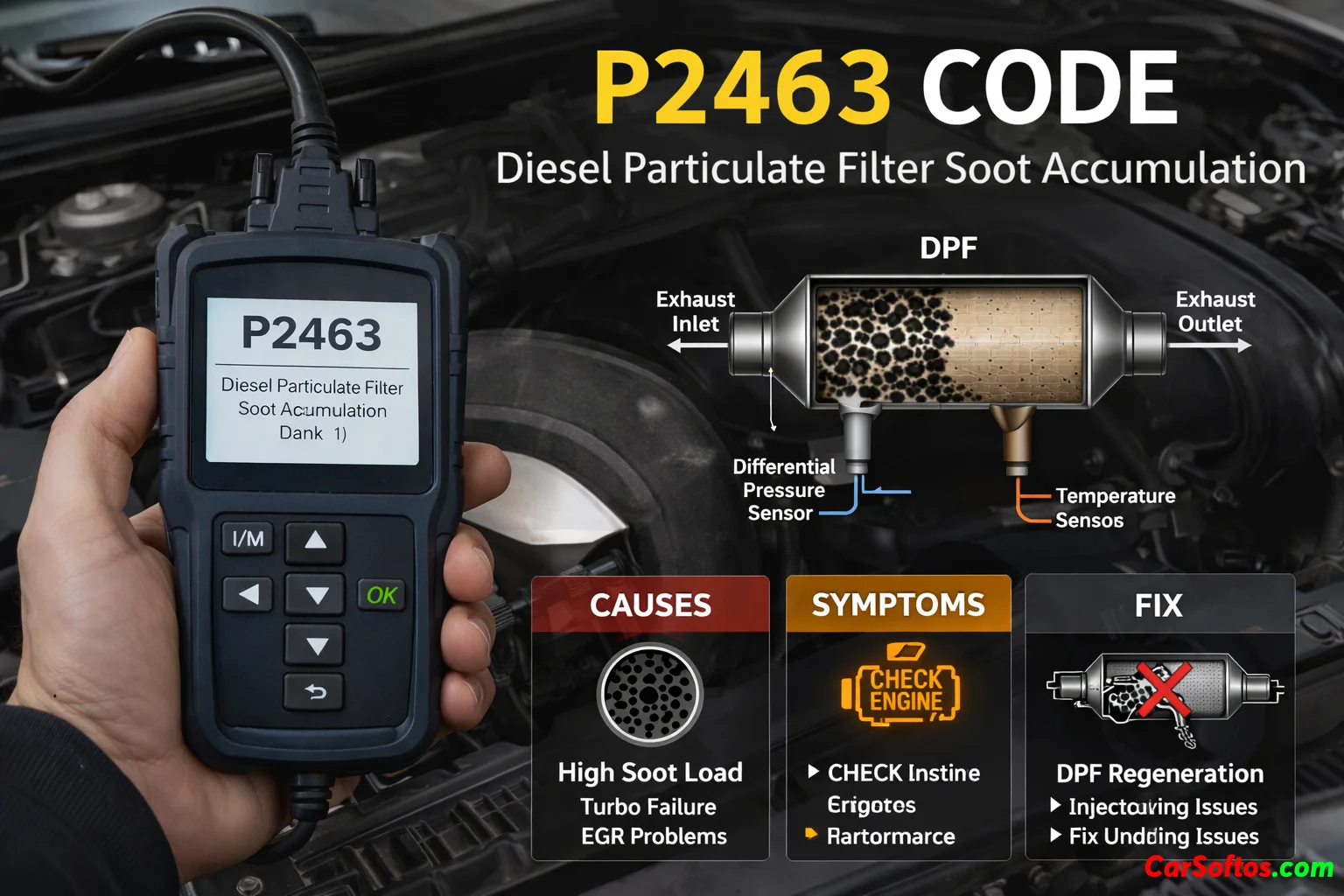

⚠️ What Does P2463 Mean?

👉 P2463 = DPF is overloaded with soot

In simple terms:

• Diesel filter (DPF) traps soot
• It should burn it off (regeneration)
• When it fails → soot builds up
• ECU detects overload → P2463

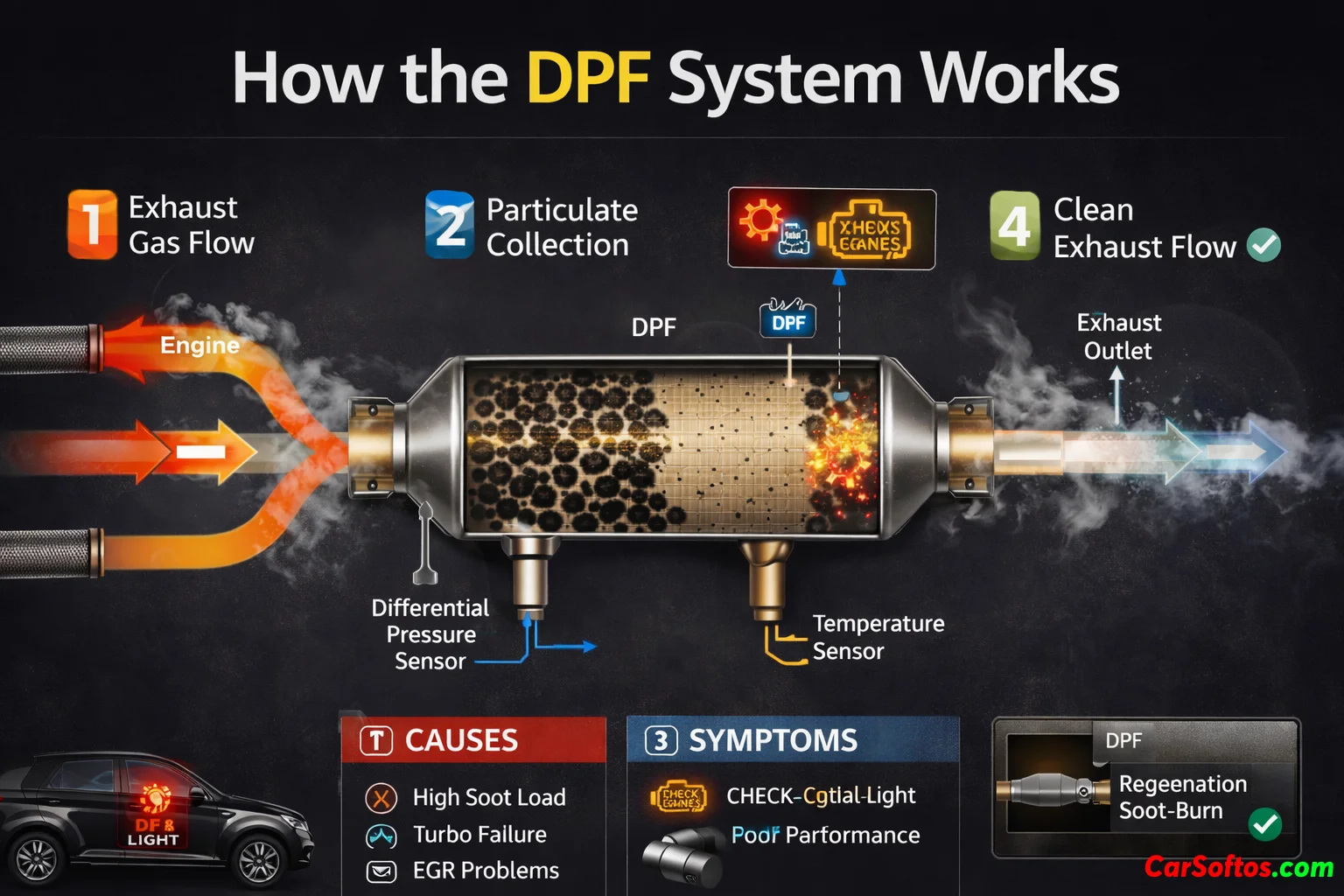

🧠 How the DPF System Works

The DPF (Diesel Particulate Filter):

• traps soot particles
• periodically burns them off (regen)

Two types of regeneration:

• 🔥 Passive (during highway driving)
• 🔥 Active (ECU controlled high temp burn)

👉 If regeneration fails → soot accumulates

🚨 Why P2463 Is SERIOUS

👉 This is more serious than P2002

Because:

💥 filter is already overloaded
💥 airflow is restricted
💥 engine cannot breathe properly

⚠️ Common Symptoms of P2463

• ⚠ Check Engine Light
• 🚗 loss of power
• 🚫 limp mode
• 🔄 frequent regen attempts
• ⛽ high fuel consumption
• 🌫 sometimes smoke

🔥 Most Common Causes of P2463

1️⃣ Failed Regeneration (MOST COMMON)

👉 #1 cause

• short trips
• low RPM driving
• interrupted regen

2️⃣ Clogged DPF (Soot Overload)

• too much soot
• cannot burn off

3️⃣ Faulty Differential Pressure Sensor

👉 VERY common

• wrong readings
• ECU thinks DPF is blocked

4️⃣ EGR System Problems

• more soot production
• faster clogging

5️⃣ Turbo / Boost Issues

• poor combustion
• increased soot

6️⃣ Fuel System Problems

• rich mixture
• incomplete burn

📊 P2463 vs P2002 (IMPORTANT)

👉 P2463 = worse stage

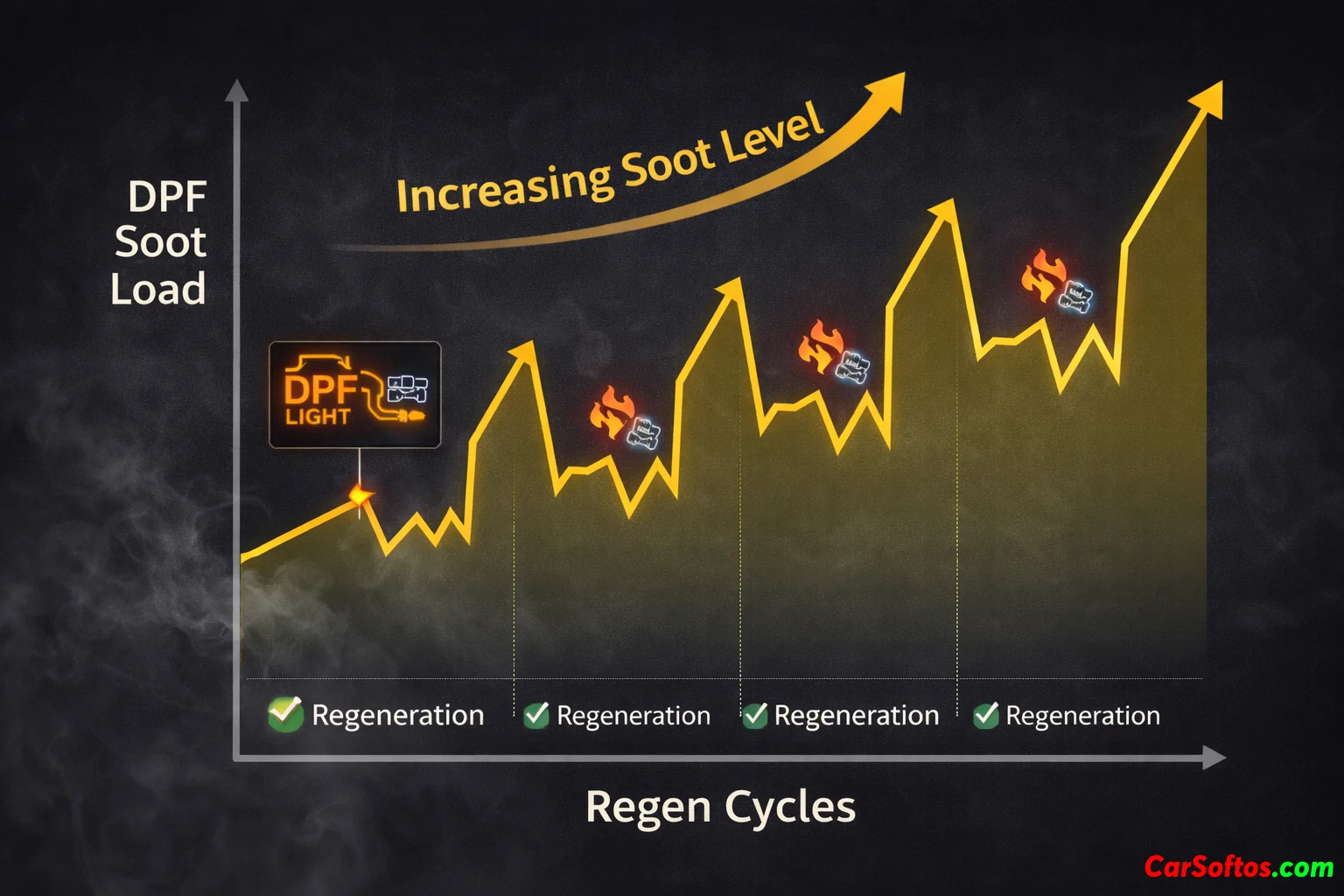

🔎 Real Behavior of P2463

👉 Typical scenario:

1. regen fails
2. soot builds up
3. DPF restriction increases
4. ECU limits power
5. limp mode

🔎 How to Diagnose P2463 (PRO LEVEL)

✔ Step-by-step:

1️⃣ Scan all codes

👉 check for EGR / turbo / fuel issues

2️⃣ Check soot load

3️⃣ Check regen history

4️⃣ Inspect pressure sensor

5️⃣ Check exhaust leaks

6️⃣ Decide:

• forced regen
• cleaning
• replacement

⚠️ Common Mistakes

❌ forcing regen without fixing cause
❌ replacing DPF too early
❌ ignoring driving style
❌ ignoring sensor

💰 Repair Cost

🚗 Can You Drive With P2463?

⚠️ NOT recommended

Risks:

• full blockage
• turbo damage
• engine overheating
• limp mode

🧠 KEY INSIGHT (VERY IMPORTANT)

👉 P2463 = system failure, not just filter

👉 Root cause often:

✔ driving style
✔ regen failure
✔ sensor issue

🏁 Final Thoughts

The P2463 code means:

👉 DPF is heavily clogged with soot

Most common causes:

• failed regeneration
• short trips
• sensor issues
• EGR / turbo problems
