P2293 Code — Fuel Pressure Regulator Performance (Causes & Fix)

The P2293 code means:

👉 The fuel pressure regulator system is not maintaining correct pressure

Modern engines—especially direct injection (GDI/FSI/TFSI)—require extremely precise fuel pressure.

The ECU constantly compares:

• Target (requested) fuel pressure

• Actual fuel pressure

If they don’t match within tolerance, the ECU triggers:

👉 P2293 — Fuel Pressure Regulator Performance

🧠 How the Fuel Pressure System Works

Modern fuel systems use two stages:

🔹 Low-pressure system (LPFP)

• Located in fuel tank

• Supplies fuel to engine

🔹 High-pressure system (HPFP)

• Driven by engine camshaft

• Boosts pressure to hundreds of bar

🔹 Fuel Rail + Injectors

• Deliver fuel directly into cylinders

👉 The ECU controls pressure using:

• fuel pressure regulator / control valve

• rail pressure sensor

⚠️ Why P2293 Is a Serious Code

Unlike simple sensor codes, P2293 usually indicates a REAL fuel delivery issue.

What can happen:

⚠ engine runs lean under load
⚠ misfires occur
⚠ power drops
⚠ engine may stall

👉 This can become a driveability and safety issue

⚠️ Common Symptoms of P2293

• hesitation during acceleration

• loss of power

• rough running

• misfires

• poor fuel economy

• hard starting (sometimes)

• engine stalling

• Check Engine Light

🔧 Most Common Causes of P2293

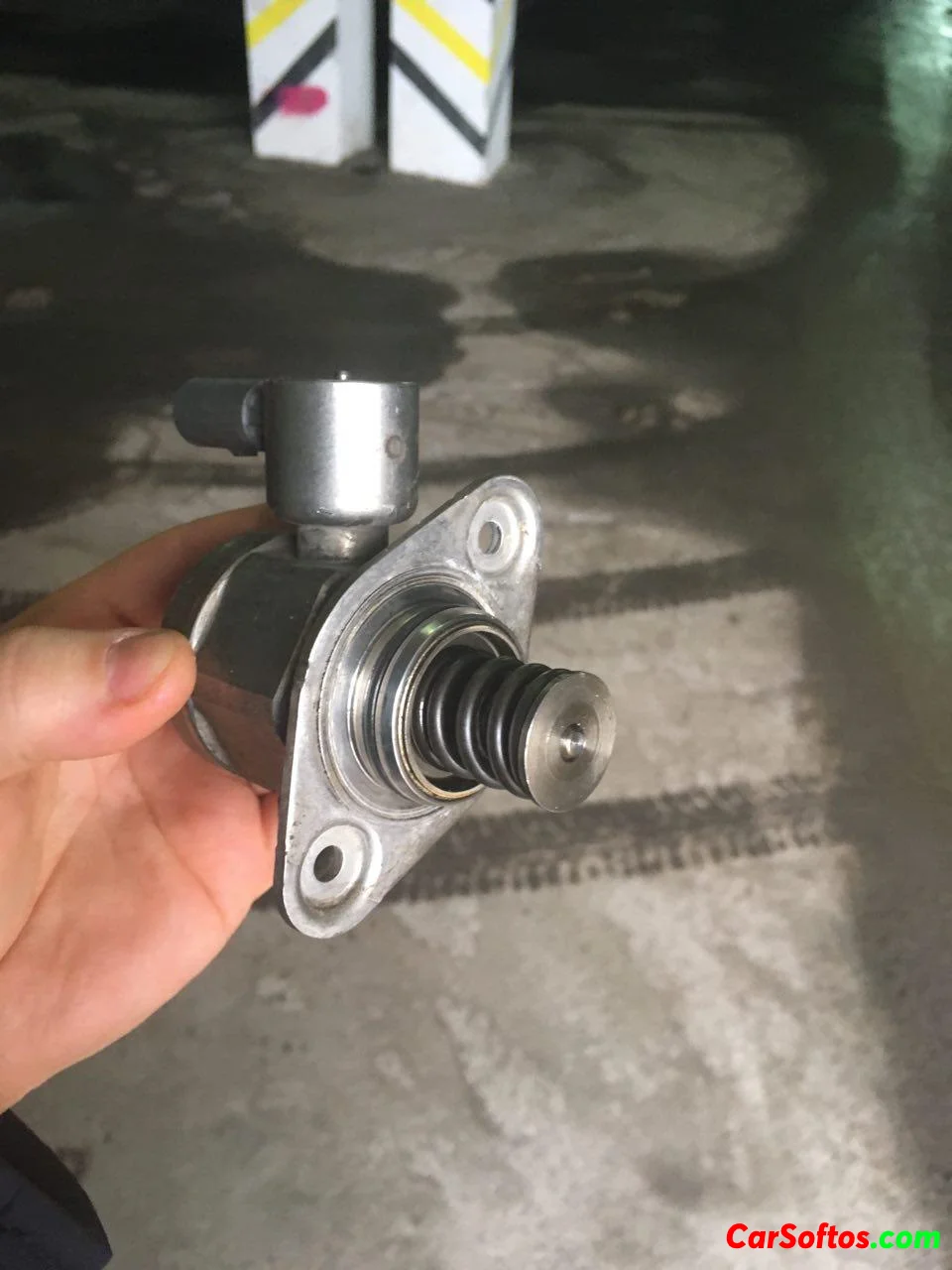

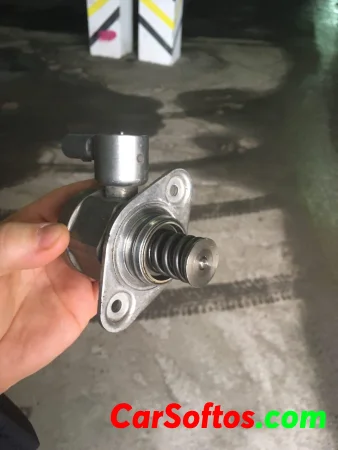

1️⃣ High-Pressure Fuel Pump (HPFP)

🔥 #1 cause

• cannot build pressure

• fails under load

• very common in GDI engines

2️⃣ Fuel Pressure Regulator / Control Valve

• stuck open or closed

• slow response

• incorrect regulation

3️⃣ Fuel Rail Pressure Sensor

• incorrect readings

• ECU misinterprets pressure

4️⃣ Low-Pressure Fuel Pump (LPFP)

• insufficient supply to HPFP

• pressure collapses under load

👉 Often overlooked!

5️⃣ Clogged Fuel Filter

• restricts fuel flow

• causes pressure drop

6️⃣ Wiring / Electrical Problems

• damaged wires

• poor ground

• connector corrosion

📊 Real Behavior of This Code

Typical pattern:

• Pressure OK at idle

• Drops under acceleration

• ECU tries to compensate

• Eventually logs P2293

🔎 P2293 vs Other Fuel Codes (VERY IMPORTANT)

👉 These often appear together → full fuel system issue

🔎 How to Diagnose P2293 (PRO LEVEL)

✔ Step-by-step:

1️⃣ Scan all codes
2️⃣ Check live fuel pressure data
3️⃣ Compare:

• requested vs actual pressure

4️⃣ Test under load (critical!)
5️⃣ Check LPFP supply
6️⃣ Inspect HPFP performance
7️⃣ Verify sensor readings

⚠️ Common Misdiagnosis

❌ Replacing HPFP immediately
❌ Ignoring LPFP
❌ Not checking sensor data

👉 Many cases are NOT HPFP

💰 Repair Cost (REALISTIC)

🚗 Can You Drive With P2293?

⚠️ Not recommended

Risks:

• engine stalling

• dangerous loss of power

• lean condition → engine damage

🧠 Key Insight (CRITICAL)

👉 P2293 is a SYSTEM problem — not a single part failure

Most real cases involve:

• pressure mismatch

• supply issues

• control failure

🏁 Final Thoughts

The P2293 code indicates a fuel pressure control failure, usually caused by:

• HPFP issues

• LPFP problems

• regulator failure

• sensor errors

👉 Proper diagnosis is essential to avoid expensive mistakes
