P0113 Code Explained — Intake Air Temperature Sensor Problem

The P0113 trouble code indicates that the Intake Air Temperature (IAT) sensor is sending a signal that is higher than the expected voltage range.

The IAT sensor measures the temperature of the air entering the engine. This information helps the engine control module (ECM) adjust the fuel mixture and ignition timing.

When the ECM detects an abnormally high voltage signal from the IAT sensor, it stores the code:

P0113 — Intake Air Temperature Sensor Circuit High Input.

This usually means the ECM believes the incoming air temperature is extremely cold, which may affect engine performance.

🔎 What Does Code P0113 Mean?

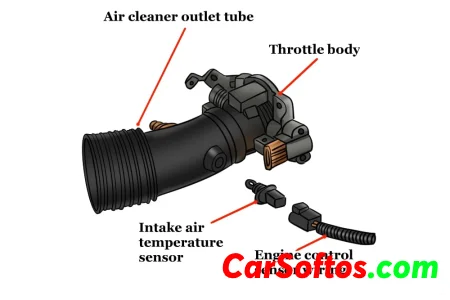

The intake air temperature sensor monitors the temperature of the air entering the engine through the intake system.

The ECM uses this information to:

• adjust fuel injection

• optimize ignition timing

• maintain proper air-fuel mixture

Most IAT sensors are thermistors, meaning their resistance changes with temperature.

When the sensor or circuit reports voltage outside the expected range, the ECM triggers the P0113 code.

⚠️ Common Symptoms of P0113

Drivers may notice several symptoms when this code appears.

Typical symptoms include:

• Check Engine Light

• poor fuel economy

• rough idle

• reduced engine performance

• hesitation during acceleration

• engine running too rich

In many cases, the vehicle may still drive normally but with reduced efficiency.

🔧 Most Common Causes of P0113

Several issues can trigger the P0113 code.

1️⃣ Faulty Intake Air Temperature Sensor

The most common cause is a failed IAT sensor that sends incorrect voltage signals.

2️⃣ Damaged Wiring or Connector

Broken wires, corrosion, or loose connectors can interrupt the signal between the sensor and the ECM.

3️⃣ Disconnected Sensor

If the IAT sensor becomes unplugged, the ECM may detect extremely high voltage and trigger this code.

4️⃣ Faulty Mass Air Flow Sensor

In many vehicles the IAT sensor is integrated into the MAF sensor, meaning a failing MAF can cause the code.

5️⃣ Intake System Problems

Air intake leaks or intake modifications may sometimes affect the sensor readings.

💰 P0113 Repair Cost

Repair costs depend on the root cause of the problem.

Typical repair costs include:

Fortunately, this is usually one of the less expensive engine codes to repair.

🚗 Can You Drive With Code P0113?

Yes, the vehicle is usually safe to drive temporarily, but the issue should still be repaired soon.

Driving with this code may cause:

⚠ poor fuel economy
⚠ incorrect air-fuel mixture
⚠ reduced engine efficiency

Fixing the problem early helps restore proper engine performance.

🔎 How Mechanics Diagnose P0113

Professional diagnosis usually includes:

✔ scanning live sensor data
✔ checking IAT sensor voltage
✔ inspecting wiring and connectors
✔ testing resistance of the sensor

Mechanics may also inspect the air intake system and MAF sensor.

🏁 Final Thoughts

The P0113 code indicates that the intake air temperature sensor is reporting a voltage signal outside the normal range.

The most common causes include:

• faulty IAT sensor

• damaged wiring

• disconnected sensor

• failing MAF sensor

Fortunately, this issue is usually easy and inexpensive to repair.
