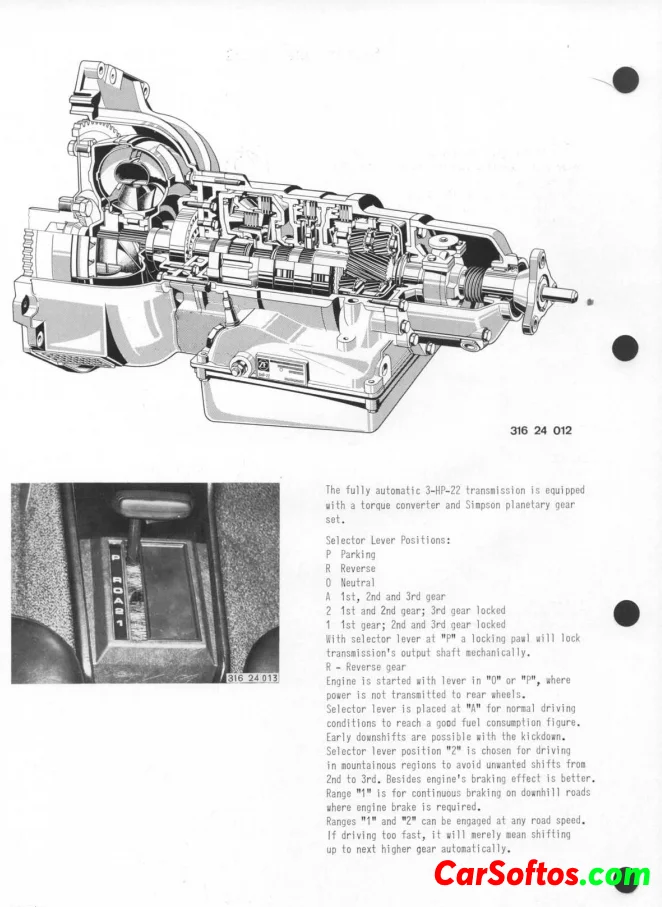

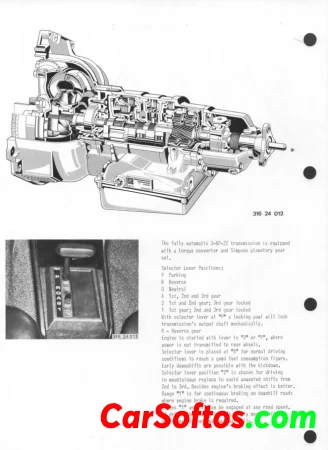

ZF 3 HP22 Transmission Overhaul Manual
Author: carsoftos777 | 17-03-2025, 03:21 | Auto repair manual | Views: 46 | Comments: 0 | Found a bug?
3HP22 is a three-speed automatic transmission from ZF Friedrichshafen AG for passenger cars with rear wheel drive layout. Introduced in 1973, it was produced through 1990, and has been used in a variety of cars from Alfa Romeo, BMW, Citroen, Peugeot, and Fiat.
CONTENTS
Specifications
Adjusting Selector Lever, Accelerator and Transmission Cables
Checking Hydraulic Pressure Values
Removing and Installing Transmission
Installing Reconditioned Transmission
Disassembling and Assembling Transmission
Removing and Installing Oil Sump
Removing and Instal1ing/Sealing Transmission Cover
Replacing Torque Converter Radial Oil Seal
Replacing Output Flange Radial Oil Seal
Replacing Speedometer Bushing 0-ring
Replacing Manual Selection Valve Shaft Radial Oil Seal
Replacing Plate Clutches and Brakes
Removing and installing Control Unit
Replacing Control Unit
Removing and Installing Primary Pump
Detaching and Attaching Oil Filter Screen at Control Unit
Removing and Installing Centrifugal Governor
Disassembling and Assembling Centrifugal Governor
Removing and Installing Parking Lock Pawl
Replacing Accelerator Cable
Replacing Accelerator Cable Sprinq
Replacing Parking Lock Can Spring
Removing and Installing Torque Converter
Replacing Torque Converter
Replacing Transmission Suspension Rubber Mount
Troubleshoot ins Automatic Transmission
Language: English
Format: PDF
